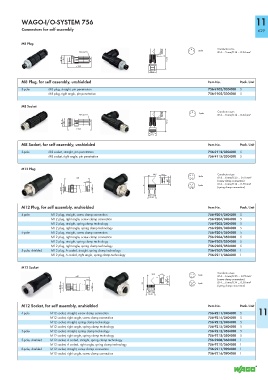

Page 631 - Wago_AutomationTechnology_Volume3_2015_US.pdf

WAGO-I/O-SYSTEM 756 11

Connectors for self assembly 629

M8 Plug
Nut size 10 3-pole Conductor sizes
Ø 4 ... 5 mm/0.14 ... 0.34 mm²
___________ Nute size 10
___________
Ø 13 <_____> M8x1 >______< ____________ <________________________> ≈ 41,5
≈ 43,5
<________________________>
M8x1 >______<
Ø 13 <_____>
M8 Plug, for self assembly, unshielded Item No. Pack. Unit
3-pole M8 plug, straight, pin penetration 756-9102/030-000 5
M8 plug, right angle, pin penetration 756-9105/030-000 5

M8 Socket
_____> 3 pole Conductor sizes
Nut size 10 Ø 4 ... 5 mm/0.14 ... 0.34 mm²
___________ Nute size 10
___________
Ø 13 <_____> M8x1 >______< ____________ <________________________> <___________ ___ ≈ 41,5
____________
≈ 43,5
<________________________>
M8x1 >______< >______<
Ø 13 <___ ____>
_>
M8 Socket, for self assembly, unshielded Item No. Pack. Unit
3-pole M8 socket, straight, pin penetration 756-9112/030-000 5
M8 socket, right angle, pin penetration 756-9115/030-000 5
M12 Plug
30,5 ≈10 Conductor sizes
<___________ >_____< 4-pole
≈60 Ø 4 ... 6 mm/0.25 ... 0.75 mm²
<___________________________> PG7 >______< Ø 17 ___< (screw clamp connection)
≈10 41 <________________> >______ Ø 4 ... 6 mm/0.14 ... 0.50 mm²
>_____<
Ø 20 >__________< M 12 >______< PG7 >______< 5-pole (spring clamp connection)
M 12 >______<
Ø 20 >__________<
M12 Plug, for self assembly, unshielded Item No. Pack. Unit
4-pole M12 plug, straight, screw clamp connection 756-9201/040-000 5
M12 plug, right angle, screw clamp connection 756-9204/040-000 5
M12 plug, straight, spring clamp technology 756-9202/040-000 5
M12 plug, right angle, spring clamp technology 756-9205/040-000 5
5-pole M12 plug, straight, screw clamp connection 756-9201/050-000 5
M12 plug, right angle, screw clamp connection 756-9204/050-000 5
M12 plug, straight, spring clamp technology 756-9202/050-000 5
M12 plug, right angle, spring clamp technology 756-9205/050-000 5
5-pole, shielded M12 plug, A coded, straight, spring clamp technology 756-9207/060-000 1
M12 plug, A coded, right angle, spring clamp technology 756-9211/060-000 1

M12 Socket
Conductor sizes
30,5 ≈10 3 4 4-pole
≈60
<________________________> <___________ >_____< 2 1 Ø 4 ... 6 mm/0.25 ... 0.75 mm²
≈10
>_____< 35 PG7 >______< Ø 17 >_________< 3 5 4 5-pole (screw clamp connection)
Ø 4 ... 6 mm/0.14 ... 0.50 mm²
Ø 20 >__________< M12 >______< PG7 >______< <____________> 2 1 (spring clamp connection)
M 12
Ø 20 >______< >__________<
M12 Socket, for self assembly, unshielded Item No. Pack. Unit
11
4-pole M12 socket, straight, screw clamp connection 756-9211/040-000 5
M12 socket, right angle, screw clamp connection 756-9214/040-000 5
M12 socket, straight, spring clamp technology 756-9212/040-000 5
M12 socket, right angle, spring clamp technology 756-9215/040-000 5
5-pole M12 socket, straight, spring clamp technology 756-9212/050-000 5
M12 socket, right angle, spring clamp technology 756-9215/050-000 5
5-pole, shielded M12 socket, A coded, straight, spring clamp technology 756-9208/060-000 1
M12 socket, A coded, right angle, spring clamp technology 756-9210/060-000 1
8-pole, shielded M12 socket, straight, screw clamp connection 756-9211/090-000 1
M12 socket, right angle, screw clamp connection 756-9214/090-000 1
