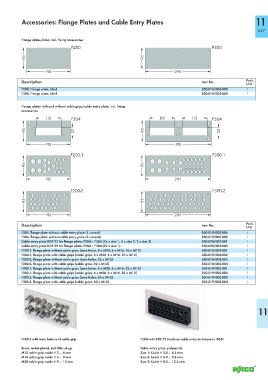

Accessories: Flange Plates and Cable Entry Plates 11

647

Flange plates, blind, incl. fixing accessories
F200 F300
<___ 95__> <___95__>

<_________195 _________> <______________295______________>
Description Item No. Pack.
Unit
F200, Flange plate, blind 850-818/002-000 1
F300, Flange plate, blind 850-819/002-000 1

Flange plates with and without cable grips/cable entry plate, incl. fixing
accessories
F204 F304
<___113 ___> < <___113 ___> <___113 ___> <
<___95__> 32 > <___95__> 32 >

<_________195 _________> <________________295 ________________>
F200-1 F300-1
<___95__> <___ 95__>

<_________195_________> <______________295______________>
F200-2 F300-2
<___95__> <___ 95__>

<_________195_________> <______________ 295______________>
Description Item No. Pack.
Unit
F204, flange plate without cable entry plate (1 cut-out) 850-818/002-005 1
F304, flange plate without cable entry plate (2 cut-outs) 850-819/002-005 1
Cable entry plate KDP 22 for flange plates F204 + F304 (16 x size 1, 4 x size 2, 2 x size 3) 850-820/002-001 1
Cable entry plate KDP 29 for flange plates F204 + F304 (29 x size 1) 850-820/002-002 1
F200-1, flange plate without cable grips (bore holes: 4 x M20, 6 x M16, 10 x M12) 850-818/002-001 1
F200-1, flange plate with cable grips (cable grips: 4 x M20, 6 x M16, 10 x M12) 850-818/002-002 1
F200-2, flange plate without cable grips (bore holes: 32 x M12) 850-818/002-003 1
F200-2, flange plate with cable grips (cable grips: 32 x M12) 850-818/002-004 1
F300-1, flange plate without cable grips (bore holes: 4 x M20, 6 x M16, 22 x M12) 850-819/002-001 1
F300-1, flange plate with cable grips (cable grips: 4 x M20, 6 x M16, 22 x M12) 850-819/002-002 1
F300-2, flange plate without cable grips (bore holes: 50 x M12) 850-819/002-003 1
F300-2, flange plate with cable grips (cable grips: 50 x M12) 850-819/002-004 1

11

F200-1 with bore holes and cable grip F204 with KDF 22 (tool-less cable entry technique in IP65)
Brass, nickel-plated, incl. filler plugs Cable entry plate, polyamide
M12 cable grip: cable ∅ 3 ... 6 mm Size 1: Cable ∅ 3.0 ... 6.5 mm
M16 cable grip: cable ∅ 5 ... 9 mm Size 2: Cable ∅ 5.0 ... 9.2 mm
M20 cable grip: cable ∅ 9 ... 13 mm Size 3: Cable ∅ 8.0 ... 12.5 mm
