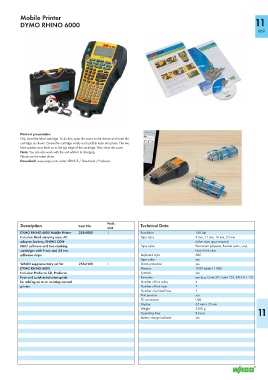

Page 671 - Wago_AutomationTechnology_Volume3_2015_US.pdf

Mobile Printer
DYMO RHINO 6000 11
669

Print-out preparation:
First, insert the label cartridge. To do this, open the cover on the device and insert the
cartridge as shown. Ensure the cartridge visibly and audibly locks into place. The two
blue catches must latch on to the top edge of the cartridge. Then close the cover.
Note: You can also work with the unit while it ist charging.
Please use the tatest driver.
Download: www.wago.com under SERVICE / Download / ProServe

Pack.
Description Item No. Technical Data
Unit
DYMO RHINO 6000 Mobile Printer 258-6000 1 Resolution 180 dpi
Includes: Hard carrying case, AC Tape sizes 9 mm, 11 mm, 19 mm, 24 mm
adapter, battery, RHINO CON- (other sizes upon request)
NECT software and two marking Tape styles Permanent polyester, flexible nylon, vinyl,
cartridges with 9 mm and 24 mm heat shrink tube
adhesive strips Keyboard style ABC
Tape cutter yes
WAGO supplementary set for 258-6100 1 Shock protection yes
DYMO RHINO 6000 Memory 1000 labels (1 MB)
Includes: ProServe CD, ProServe Symbols yes
flyer and quick installation guide Barcodes yes (e.g. Code 39, Code 128, EAN 8 + 13)
for adding on to an existing manual Number of font styles 4
printer Number of font sizes 7
Number of printed lines 5
Print preview yes
PC connection USB
Display 65 mm x 35 mm
Weight 3500 g
Operating time 8 hours 11
Battery charge indicator yes
