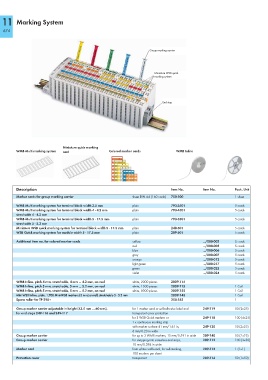

Page 676 - Wago_AutomationTechnology_Volume3_2015_US.pdf

11 Marking System

674

Gr
Gruppenbezeichnungsträgeroup marking carrier

Mini-WSB-
Miniature WSB quick
Schnellbezeichnungssystem
marking system

Endklammer
End stop

Miniature quick marking
WMB Multi marking system card Colored marker cards WMB Inline

Description Item No. Item No. Pack. Unit
Marker cards for group marking carrier sheet DIN A4 (160 cards) 750-100 1 sheet
WMB Multi marking system for terminal block width 3.5 mm plain 793-3501 5 cards
WMB Multi marking system for terminal block width 4 - 4.2 mm plain 793-4501 5 cards
strechable 4 - 4.2 mm
WMB Multi marking system for terminal block width 5 - 17.5 mm plain 793-5501 5 cards
strechable 5 - 5.2 mm
Miniature WSB quick marking system for terminal block width 5 - 17.5 mm plain 248-501 5 cards
WSB Quick marking system for module width 5 - 17.5 mm plain 209-501 5 cards
Additional item no. for colored marker cards yellow .../000-002 5 cards
red .../000-005 5 cards
blue .../000-006 5 cards
gray .../000-007 5 cards
orange .../000-012 5 cards
light green .../000-017 5 cards
green .../000-023 5 cards
violet .../000-024 5 cards

WMB Inline, pitch 4 mm, stretchable, 4 mm ... 4.2 mm, on reel white, 2000 pieces 2009-114
WMB Inline, pitch 5 mm, stretchable, 5 mm ... 5.2 mm, on reel white, 1500 pieces 2009-115 1 Coil
WMB Inline, pitch 5 mm, stretchable, 5 mm ... 5.2 mm, on reel white, 8000 pieces 2009-135 1 Coil
Mini-WSB Inline, plain, 1,700 Mini-WSB markers (5 mm) on roll, stretchable 5 - 5.2 mm 2009-145 1 Coil
Spare roller for TP 298+ 258-183 1
Group marker carrier adjustable in height (43.5 mm ... 60 mm), for 1 marker card or self-adhesive label and 249-119 50 (2x25)
for end stops 249-116 and 249-117 transparent cover protection
for 2 WSB Quick markers or 249-118 100 (4x25)
1 x continuous marking strip
with marker surface 41 mm/1.61 in, 249-120 50 (2x25)
6 mm/0.23 in wide
Group marker carrier for up to 3 WMB markers, 15 mm/0.591 in wide 209-140 50 (2x25)
Group marker carrier for snapping into screwless end stops, 209-112 100 (2x50)
10 mm/0.394 in wide
Marker card from white cardboard, for self-marking, 209-113 1 (1x1)
100 markers per sheet
Protection cover transparent 209-114 50 (1x50)
