FT Series Linear Actuators

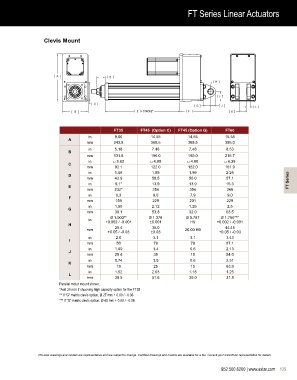

Clevis Mount

A D
H

I
C
G J L
B E + STROKE* F K

FT35 FT45 (Option C) FT45 (Option G) FT60
in 9.60 14.55 14.55 15.55
A
mm 243.8 369.5 369.5 395.0
in 5.18 7.48 7.48 8.53
B
mm 131.6 190.0 190.0 216.7
in □ 3.63 □ 4.80 □ 4.80 □ 6.38
C
mm 92.1 122.0 122.0 161.9
in 1.69 1.99 1.99 2.25
D
mm 42.9 50.5 50.0 57.1 FT Series
in 9.1* 13.9 13.9 15.3
E
mm 232* 354 354 368
in 6.3 9.0 7.9 9.0
F
mm 159 229 201 229
in 1.50 2.12 1.26 2.5
G
mm 38.1 53.8 32.0 63.5
Ø 1.000**
Ø 1.750***
in +0.002 / -0.001 Ø 1.378 Ø 0.787 +0.002 / -0.001
H9
±0.001
H
mm 25.4 35.0 20.00 H9 44.45
+0.05 / -0.03 ±0.03 +0.05 / -0.03
in 2.0 3.1 3.1 3.43
I
mm 50 78 78 87.1
in 1.00 1.4 0.6 2.13
J
mm 25.4 35 15 54.0
in 0.74 1.0 0.6 2.51
K
mm 19 25 15 63.9
in 1.52 2.03 1.18 1.25
L
mm 38.5 51.6 30.0 31.8
Parallel motor mount shown.
* Add 20 mm if choosing high capacity option for the FT35.
** If “G” metric clevis option, Ø 27 mm + 0.00 / - 0.06
*** If “G” metric clevis option, Ø 45 mm + 0.00 / - 0.08

Pre-sale drawings and models are representative and are subject to change. Certified drawings and models are available for a fee. Consult your local Exlar representative for details.
