FT Series Linear Actuators

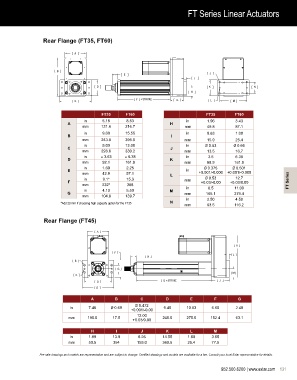

Rear Flange (FT35, FT60)

A

B
E J
I
D K N
H

C F + STROKE G L M

FT35 FT60 FT35 FT60
in 5.18 8.53 in 1.96 3.43
A H
mm 131.6 216.7 mm 49.8 87.1
in 9.60 15.55 in 0.63 1.00
B I
mm 243.8 395.0 mm 15.9 25.4
in 9.00 13.00 in Ø 0.53 Ø 0.66
C J
mm 228.6 330.2 mm 13.5 16.7
in □ 3.63 □ 6.38 in 3.5 6.38
D K
mm 92.1 161.9 mm 88.9 161.9
in 1.69 2.25 Ø 0.375 Ø 0.501
E in
mm 42.9 57.1 L +0.001/-0.000 +0.001/-0.000
in 9.1* 15.3 mm Ø 9.53 12.7
F +0.03/-0.00 +0.03/0.00 FT Series
mm 232* 388
in 4.13 5.50 M in 6.5 11.00
G mm 165.1 279.4
mm 104.8 139.7 in 2.50 4.58
* Add 20 mm if choosing high capacity option for the FT35 N mm 63.5 116.2

Rear Flange (FT45)

A

K
F L
H
B
G
M
C
D [ I ] + STROKE J
E
A B C D E F G
Ø 0.472
in 7.48 Ø 0.69 +0.001/-0.00 9.45 10.83 6.00 2.48
mm 190.0 17.5 12.00 240.0 275.0 152.4 63.1
+0.03/0.00

H I J K L M
in 1.99 13.9 6.26 14.55 1.00 3.05
mm 50.5 354 159.0 369.5 25.4 77.5

Pre-sale drawings and models are representative and are subject to change. Certified drawings and models are available for a fee. Consult your local Exlar representative for details.

952.500.6200 | www.exlar.com 131
