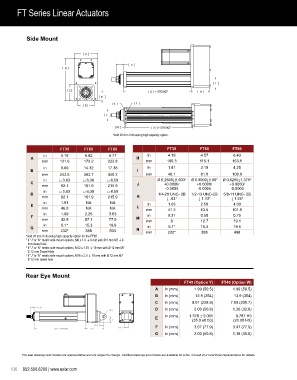

FT Series Linear Actuators

Side Mount

A

F
B

I
C G + STROKE* H
E
K J
D
L

M N + STROKE*
* Add 20 mm if choosing high capacity option.

FT35 FT60 FT80 FT35 FT60 FT80
in 5.18 6.82 8.77 in 4.19 4.57 6.43
A H
mm 131.6 173.2 222.8 mm 106.3 116.1 163.5
in 9.60 14.32 17.38 in 1.81 3.19 4.25
B I
mm 243.8 363.7 440.2 mm 46.1 81.0 108.0
in □ 3.63 □ 6.38 □ 8.50 Ø 0.2500↓0.400 1 Ø 0.5000↓1.00 2 Ø 0.6250↓1.375 3
C J +0.0000/ +0.0000/ +0.0000/
mm 92.1 161.9 215.9 -0.0005 -0.0005 -0.0005
in □ 3.63 □ 6.38 □ 8.50
D 1/4-20 UNC- 2B 1/2-13 UNC-2B 5/8-11 UNC- 2B
mm 92.1 161.9 215.9 K ↓ .63 1 ↓ 1.13 2 ↓ 1.25 3
in 1.81 NA NA
E L in 1.63 2.50 4.00
mm 46.0 NA NA mm 41.3 63.5 101.6
in 1.69 2.25 3.03
F M in 0.31 0.50 0.75
mm 42.9 57.1 77.0 mm 8 12.7 19.1
in 9.1* 15.3 19.8
G N in 9.1* 15.3 19.6
mm 232* 388 503 mm 232* 388 498
*Add 20 mm if choosing high capacity option for the FT35.
1 If “J” or “K” metric side mount options, M6 x 1.0  9 mm with Ø 6 mm M7  9
mm dowel hole
2 If “J” or “K” metric side mount options, M12 x 1.75  19 mm with Ø 12 mm M7
 12 mm Dowel Hole
3 If “J” or “K” metric side mount options, M16 x 2.0  16 mm with Ø 12 mm M7
 12 mm dowel hole

Rear Eye Mount
FT45 (Option Y) FT45 (Option W)
A in (mm) 1.99 (50.5) 1.99 (50.5)
B in (mm) 13.9 (354) 13.9 (354)
C in (mm) 9.01 (228.9) 7.90 (200.7)
[ A ] D
[ E ] in (mm) 2.00 (50.8) 1.26 (32.0)
in (mm) 1.378 ± 0.001 0.787 H9
E
[ F ] (35.0 ±0.03) (20.00 H9)
[ D ]
[ G ] F in (mm) 3.07 (77.9) 3.07 (77.9)
[ B ] + STROKE [ C ]
G in (mm) 2.00 (50.8) 1.18 (30.0)

Pre-sale drawings and models are representative and are subject to change. Certified drawings and models are available for a fee. Consult your local Exlar representative for details.
