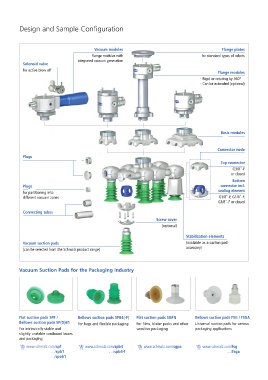

Design and Sample Configuration

Vacuum modules Flange plates
Flange modules with for standard types of robots
integrated vacuum generation
Solenoid valve
for active blow off
Flange modules
- Rigid or rotating by 360°
- Can be extended (optional)

Basic modules

Connector node
Plugs
Top connector
G3/8"-F
or closed
Bottom
Plugs connector incl.
sealing element
for partitioning into
different vacuum zones G1/8"-F, G1/4"-F,
G3/8"-F or closed

Connecting tubes
Screw cover
(optional)
Stabilization elements
Vacuum suction pads (available as a suction pad
accessory)
(can be selected from the Schmalz product range)

Vacuum Suction Pads for the Packaging Industry

Flat suction pads SPF / Bellows suction pads SPB4(-F) Flat suction pads SGPN Bellows suction pads FSG / FSGA
Bellows suction pads SP(O)B1 For bags and flexible packaging For films, blister packs and other Universal suction pads for various
For intrinsically stable and sensitive packaging packaging applications
slightly unstable cardboard boxes
and packaging
www.schmalz.com/spf www.schmalz.com/spb4 www.schmalz.com/sgpn www.schmalz.com/fsg
…/spb1 …/spb4-f …/fsga
…/spob1
