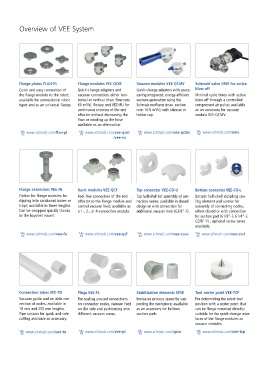

Overview of VEE System

Flange plates FLAN-PL Flange modules VEE-QCM Vacuum modules VEE-QCMV Solenoid valve EMV for active
Quick and easy connection of Quick-change adapters and Quick-change adapters with space- blow off
the flange module to the robot; vacuum connection; either hori- saving integrated, energy-efficient Minimal cycle times with active
available for connectional robot zontal or vertical (max. flow rate vacuum generation using the blow off through a controlled
types and as an universal flange. 60 m³/h). Rotary unit VEE-RU for Schmalz ecoPump (max. suction compressed air pulse; available
continuous rotation of the end rate: 10.5 m³/h); with silencer or as an accessory for vacuum
effector without decreasing the holder cap. module VEE-QCMV.
flow or winding up the hose
available as an alternative.
www.schmalz.com/flan-pl www.schmalz.com/vee-qcm www.schmalz.com/vee-qcmv www.schmalz.com/emv
…/vee-ru

Flange extensions VEE-FE Basic modules VEE-QCF Top connector VEE-CO-U Bottom connector VEE-CO-L
Option for flange modules for Tool-free connection of the end Top half-shell for assembly of con- Bottom half-shell including sea-
dipping into cardboard boxes or effector to the flange module and nection nodes; available in closed ling element and screws for
trays; available in three lengths. central vacuum feed; available as design or with connection for assembly of connecting nodes;
Can be swapped quickly thanks a 1-, 2-, or 4-connection module. additional vacuum feed (G3/8“-F). either closed or with connection
to the bayonet mount. for suction pad (G1/8“-F, G1/4“-F,
G3/8“-F) ; optional screw cover
available.
www.schmalz.com/vee-fe www.schmalz.com/vee-qcf www.schmalz.com/vee-co-u www.schmalz.com/vee-co-l

Connection tubes VEE-TU Plugs VEE-PL Stabilization elements SPSE Tool center point VEE-TCP
Vacuum guide and variable con- For sealing unused connections Increases process speed by sup- For determining the robot tool
nection of nodes; available in on connector nodes, vacuum feed porting the workpiece; available position with a center point that
18 mm and 200 mm lengths. on the side and partitioning into as an accessory for bellows can be flange mounted directly;
Pipe scissors for quick and safe different vacuum zones. suction pads. suitable for the quick-change inter-
cutting available as accessory. faces of the flange modules or
vacuum modules.
www.schmalz.com/vee-tu www.schmalz.com/vee-pl www.schmalz.com/spse www.schmalz.com/vee-tcp
