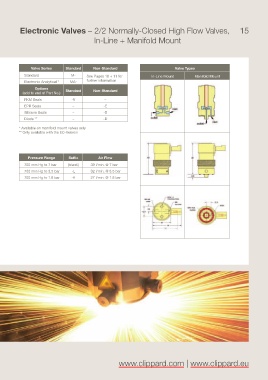

Page 17 - Clippard - Electronic Valves Metric Catalog

Electronic Valves – 2/2 Normally-Closed High Flow Valves, 15
In-Line + Manifold Mount

Valve Series Standard Non-Standard Valve Types
Standard M- See Pages 10 + 11 for In-Line Mount Manifold Mount
Electronic Analytical * MA- further information
Options
(add to end of Part No.) Standard Non-Standard
FKM Seals -V –
EPR Seals – -E
Silicone Seals – -S
Diode ** – -D

* Available on manifold mount valves only
** Only available with the EC-Version

Pressure Range Suffi x Air Flow
700 mm Hg to 7 bar (blank) 39 l/min. @ 7 bar
700 mm Hg to 3.5 bar -L 32 l/min. @ 3.5 bar
700 mm Hg to 1.8 bar -H 27 l/min. @ 1.8 bar
