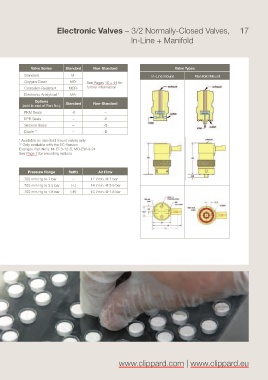

Page 19 - Clippard - Electronic Valves Metric Catalog

Electronic Valves – 3/2 Normally-Closed Valves, 17
In-Line + Manifold

Valve Series Standard Non-Standard Valve Types
Standard M- In-Line Mount Manifold Mount
Oxygen Clean MO- See Pages 10 + 11 for
Corrosion-Resistant MCR- further information
Electronic Analytical * MA-
Options
(add to end of Part No.) Standard Non-Standard
FKM Seals -V –
EPR Seals – -E
Silicone Seals – -S
Diode ** – -D
* Available on manifold mount valves only
** Only available with the EC-Version
Example Part No‘s: M-ET-3-12-S, MO-EW-3-24
See Page 7 for mounting options

Pressure Range Suffi x Air Flow
700 mm Hg to 7 bar – 17 l/min. @ 7 bar
700 mm Hg to 3.5 bar (-L) 14 l/min. @ 3.5 bar
700 mm Hg to 1.8 bar (-H) 13 l/min. @ 1.8 bar

www.clippard.com | www.clippard.eu
