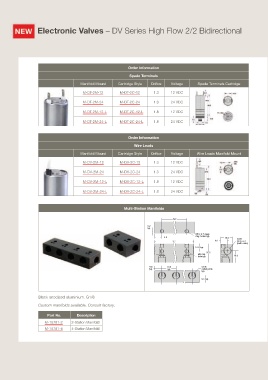

Page 32 - Clippard - Electronic Valves Metric Catalog

Electronic Valves – DV Series High Flow 2/2 Bidirectional

Order Information

Spade Terminals
Manifold Mount Cartridge Style Orifi ce Voltage Spade Terminals Cartridge
M-DT-2M-12 M-DT-2C-12 1.3 12 VDC

M-DT-2M-24 M-DT-2C-24 1.3 24 VDC

M-DT-2M-12-L M-DT-2C-12-L 1.8 12 VDC
M-DT-2M-24-L M-DT-2C-24-L 1.8 24 VDC

Order Information
Wire Leads
Manifold Mount Cartridge Style Orifi ce Voltage Wire Leads Manifold Mount

M-DV-2M-12 M-DV-2C-12 1.3 12 VDC
M-DV-2M-24 M-DV-2C-24 1.3 24 VDC

M-DV-2M-12-L M-DV-2C-12-L 1.8 12 VDC

M-DV-2M-24-L M-DV-2C-24-L 1.8 24 VDC

Multi-Station Manifolds
M-15781-4 4 76.5 M-15781-4 57.2 4 76.5 57.2
M-15781-2 2 38.5 M-15781-2 19.0 2 38.5 19.0
PART NO.
“M” “M” PART NO. STATIONS LENGTH "L" MTG "M" STATIONS LENGTH "L" MTG "M"
3.2 3.2
typ. typ.
M5 x 4.7 deep M5 x 4.7 deep
mtg. holes typ. mtg. holes typ.
9.8 9.8 16.0 G1/8 16.0 G1/8
9.0
“L” “L” 9.0 inlet port inlet port
(both ends) (both ends)
10.2 typ. 10.2 typ.
25.5 25.5
M5 mtg. M5 mtg. 16.0 16.0
hole typ. hole typ.
9.8 19.0 9.8 19.0 G1/8 G1/8
typ. typ. typ. typ. outlet ports outlet ports
typ. typ.
9.5 typ. 9.5 typ.

Black anodized aluminium. G1/8
Custom manifolds available. Consult factory.

Part No. Description
M-15781-2 2-Station Manifold
M-15781-4 4-Station Manifold
