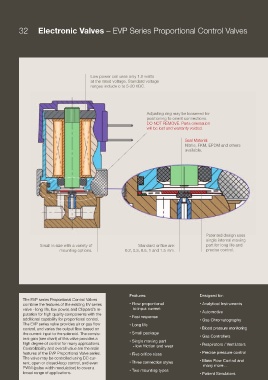

32 Electronic Valves – EVP Series Proportional Control Valves

Low power coil uses only 1.9 watts
at the rated voltage. Standard voltage
ranges include o to 5-20 VDC.

Adjusting ring may be loosened for
positioning to orient connections.
DO NOT REMOVE. Parts orientation
will be lost and warranty voided.

Seal Material:
Nitrile, FKM, EPDM and others
available.

Patented design uses
single internal moving
Small in size with a variety of Standard orifi ce are: part for long life and
mounting options. 0.2, 0.3, 0.6, 1 and 1.5 mm. precise control.

Features: Designed for:
The EVP series Proportional Control Valves
combine the features of the existing EV series • Flow proportional • Analytical Instruments
valve - long life, low power, and Clippard’s re- to input current
• Automotive
putation for high quality components with the
• Fast response
additional capability for proportional control. • Gas Chromatography
The EVP series valve provides air or gas fl ow • Long life
control, and varies the output fl ow based on • Blood pressure monitoring
the current input to the solenoid. The consis- • Small package
• Gas Controllers
tent gain (see chart) of this valve provides a
• Single moving part
high degree of control for many applications. • Respirators / Ventilators
- low friction and wear
Controllability and overall value are the main
features of the EVP Proportional Valve series. • Five orifi ce sizes • Precise pressure control
The valve may be controlled using DC cur-
rent, open or closed-loop control, and even • Three connection styles • Mass Flow Control and
many more...
PWM (pulse width modulation) to cover a
• Two mounting types
broad range of applications. • Patient Simulators
