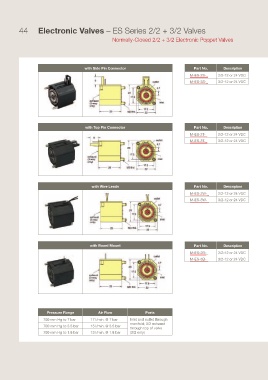

44 Electronic Valves – ES Series 2/2 + 3/2 Valves
Normally-Closed 2/2 + 3/2 Electronic Poppet Valves

with Side Pin Connector Part No. Description
M-ES-2S-_ 2/2-12 or 24 VDC
M-ES-3S-_ 3/2-12 or 24 VDC

with Top Pin Connector Part No. Description
M-ES-2T-_ 2/2-12 or 24 VDC
M-ES-3T-_ 3/2-12 or 24 VDC

with Wire Leads Part No. Description
M-ES-2W-_ 2/2-12 or 24 VDC
M-ES-3W-_ 3/2-12 or 24 VDC

with Board Mount Part No. Description
M-ES-2B-_ 2/2-12 or 24 VDC
M-ES-3B-_ 3/2-12 or 24 VDC

Pressure Range Air Flow Ports
700 mm Hg to 7 bar 17 l/min. @ 7 bar Inlet and outlet through
manifold; 3/2 exhaust
700 mm Hg to 3.5 bar 15 l/min. @ 3.5 bar
through top of valve
700 mm Hg to 1.8 bar 13 l/min. @ 1.8 bar (3/2 only)
