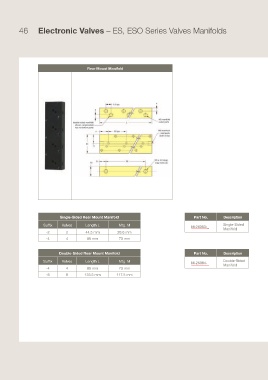

46 Electronic Valves – ES, ESO Series Valves Manifolds

Rear Mount Manifold

Single-Sided Rear Mount Manifold Part No. Description
Suffi x Valves Length L Mtg. M Single-Sided
M-26083-_
Manifold
-2 2 44.5 mm 28.6 mm
-4 4 89 mm 73 mm

Double-Sided Rear Mount Manifold Part No. Description
Suffi x Valves Length L Mtg. M Double-Sided
M-26084-_
Manifold
-4 4 89 mm 73 mm
-8 8 133.5 mm 117.5 mm
