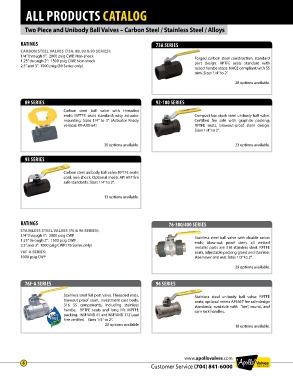

Page 6 - Apollo - All Products Catalog 2015

ALL PRODUCTS CATALOG

Two Piece and Unibody Ball Valves – Carbon Steel / Stainless Steel / Alloys

RATINGS 73A SERIES

CARBON STEEL VALVES (73A, 89, 92 & 93 SERIES):
1/4” through 1”: 2000 psig CWP, Non-shock Forged carbon steel construction, standard
1.25” through 2”: 1500 psig CWP, Non-shock port design. RPTFE seats standard with
2.5” and 3”: 1000 psig (89 Series only)
raised handle stops. NACE compliant with SS
trim. Sizes 1/4” to 2”.

28 options available.

89 SERIES 92-100 SERIES
Carbon steel ball valve with threaded
ends; MPTFE seats standard; easy actuator Compact bar stock steel unibody ball valve.
mounting. Sizes 1/4” to 3”. (Actuator Ready Certified fire safe with graphite packing;
version: 89-ARX-64) RPTFE seats, blowout-proof stem design.
Sizes 1/4” to 2”.

30 options available. 23 options available.

93 SERIES

Carbon steel unibody ball valve; RPTFE seats;
cold, non-shock. Optional meets API 607 fire
safe standards. Sizes 1/4” to 2”.

13 options available.

RATINGS 76-300/400 SERIES
STAINLESS STEEL VALVES (76 & 96 SERIES):
1/4” through 1”: 2000 psig CWP Stainless steel ball valve with double union
1.25” through 2”: 1500 psig CWP ends; blow-out proof stem, all wetted
2.5” and 3”: 1000 psig CWP (76 Series only)
metallic parts are 316 stainless steel. RPTFE
76F-A SERIES: seats, adjustable packing gland and stainless
1000 psig CWP steel lever and nut. Sizes 1/2” to 2”.

29 options available.

76F-A SERIES 96 SERIES

Stainless steel full port valve. Threaded ends, Stainless steel unibody ball valve; RPTFE
blowout proof stem, investment cast body, seats; optional meets API 607 fire safe design
316 SS components, including stainless standards; available with “tee”, round, and
handle. RPTFE seats and long life MPTFE cam lock handles.
packing. NSF/ANSI 61 and NSF/ANSI 372 Lead
Free certified. Sizes 1/4” to 2”.
20 options available 18 options available.

www.apollovalves.com
6
Customer Service (704) 841-6000
