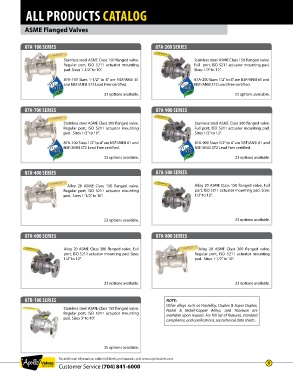

Page 9 - Apollo - All Products Catalog 2015
P. 9
ALL PRODUCTS CATALOG
ASME Flanged Valves
87A-100 SERIES 87A-200 SERIES
Stainless steel ASME Class 150 flanged valve. Stainless steel ASME Class 150 flanged valve.
Regular port, ISO 5211 actuator mounting Full port, ISO 5211 actuator mounting pad.
pad. Sizes 1-1/2” to 10”. Sizes 1/2” to 12”.
87A-100 Sizes 1-1/2” to 4” are NSF/ANSI 61 87A-200 Sizes 1/2” to 4” are NSF/ANSI 61 and
and NSF/ANSI 372 Lead Free certified. NSF/ANSI 372 Lead Free certified.
23 options available. 23 options available.
87A-700 SERIES 87A-900 SERIES
Stainless steel ASME Class 300 flanged valve. Stainless steel ASME Class 300 flanged valve.
Regular port, ISO 5211 actuator mounting Full port, ISO 5211 actuator mounting pad.
pad. Sizes 1/2” to 10”. Sizes 1/2” to 12”.
87A-700 Sizes 1/2” to 4” are NSF/ANSI 61 and 87A-900 Sizes 1/2” to 4” are NSF/ANSI 61 and
NSF/ANSI 372 Lead Free certified. NSF/ANSI 372 Lead Free certified.
23 options available. 23 options available.
87A-400 SERIES 87A-500 SERIES
Alloy 20 ASME Class 150 flanged valve. Alloy 20 ASME Class 150 flanged valve. Full
Regular port, ISO 5211 actuator mounting port, ISO 5211 actuator mounting pad. Sizes
pad. Sizes 1-1/2” to 10”. 1/2” to 12”.
23 options available. 23 options available.
87A-600 SERIES 87A-800 SERIES
Alloy 20 ASME Class 300 flanged valve. Full Alloy 20 ASME Class 300 flanged valve.
port, ISO 5211 actuator mounting pad. Sizes Regular port, ISO 5211 actuator mounting
1/2” to 12”. pad. Sizes 1-1/2” to 10”.
23 options available. 23 options available.
87B-100 SERIES NOTE:
Other alloys such as Hastelloy, Duplex & Super Duplex,
Stainless steel ASME Class 150 flanged valve. Nickel & Nickel-Copper Alloys, and Titanium are
Regular port; ISO 5211 actuator mounting available upon request. For full list of features, standard
pad. Sizes 3” to 10”. compliance, and certifications; see technical data sheets.
25 options available.
For additional information, submittal sheets and manuals, visit www.apollovalves.com
Customer Service (704) 841-6000 9
