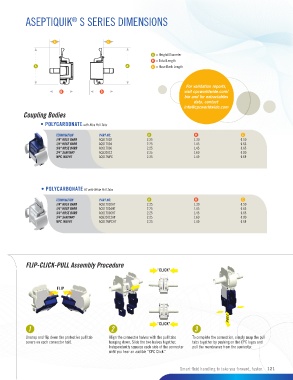

ASEPTIQUIK S SERIES DIMENSIONS
®

C C

A = Height/Diameter
B = Total Length
A A C = Hose Barb Length

For validation reports,
B B visit cpcworldwide.com/
bio and for extractables
data, contact
info@cpcworldwide.com
Coupling Bodies
• POLYCARBONATE with Blue Pull Tabs

TERMINATION PART NO. A B C
1/8" HOSE BARB AQS17002 2.25 1.30 0.50
1/4" HOSE BARB AQS17004 2.25 1.45 0.65
3/8" HOSE BARB AQS17006 2.25 1.45 0.65
3/4" SANITARY AQS33012 2.25 1.60 0.80
MPC INSERT AQS17MPC 2.25 1.49 0.69

• POLYCARBONATE HT with White Pull Tabs

TERMINATION PART NO. A B C
1/8" HOSE BARB AQS17002HT 2.25 1.30 0.50
1/4" HOSE BARB AQS17004HT 2.25 1.45 0.65
3/8" HOSE BARB AQS17006HT 2.25 1.45 0.65
3/4" SANITARY AQS33012HT 2.25 1.60 0.80
MPC INSERT AQS17MPCHT 2.25 1.49 0.69

FLIP-CLICK-PULL Assembly Procedure
"CLICK"

FLIP

PULL
"CLICK"
1 2 3
Unsnap and flip down the protective pull tab Align the connector halves with the pull tabs To complete the connection, simply snap the pull
covers on each connector half. hanging down. Slide the two halves together. tabs together by pushing on the CPC logos and
Independently squeeze each side of the connector pull the membranes from the connector.
until you hear an audible “CPC Click."
