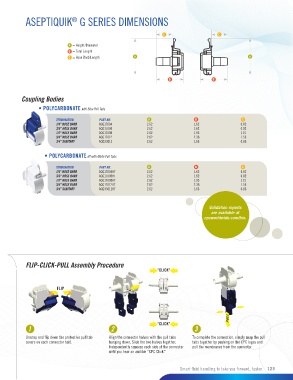

ASEPTIQUIK G SERIES DIMENSIONS
®

C C

A = Height/Diameter
B = Total Length
C = Hose Barb Length A A

B B

Coupling Bodies
• POLYCARBONATE with Blue Pull Tabs

TERMINATION PART NO. A B C
1/4" HOSE BARB AQG17004 2.62 1.62 0.82
3/8" HOSE BARB AQG17006 2.62 1.62 0.82
1/2" HOSE BARB AQG17008 2.62 1.95 1.15
3/4" HOSE BARB AQG17012 2.62 2.36 1.56
3/4" SANITARY AQG33012 2.62 1.66 0.86

• POLYCARBONATE HT with White Pull Tabs

TERMINATION PART NO. A B C
1/4" HOSE BARB AQG17004HT 2.62 1.62 0.82
3/8" HOSE BARB AQG17006HT 2.62 1.62 0.82
1/2" HOSE BARB AQG17008HT 2.62 1.95 1.15
3/4" HOSE BARB AQG17012HT 2.62 2.36 1.56
3/4" SANITARY AQG33012HT 2.62 1.66 0.86

Validation reports
are available at
cpcworldwide.com/bio.

FLIP-CLICK-PULL Assembly Procedure
"CLICK"

FLIP

PULL
"CLICK"
1 2 3
Unsnap and flip down the protective pull tab Align the connector halves with the pull tabs To complete the connection, simply snap the pull
covers on each connector half. hanging down. Slide the two halves together. tabs together by pushing on the CPC logos and
Independently squeeze each side of the connector pull the membranes from the connector.
until you hear an audible “CPC Click."
