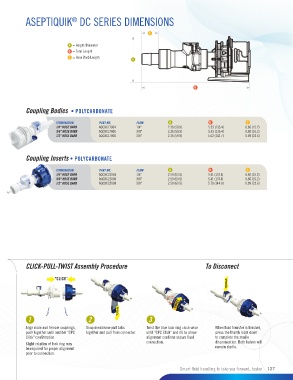

ASEPTIQUIK DC SERIES DIMENSIONS
®

C

A = Height/Diameter
B = Total Length
C = Hose Barb Length
A

B

Coupling Bodies • POLYCARBONATE

TERMINATION PART NO. FLOW A B C
1/4" HOSE BARB AQCDC17004 1/4" 2.36 (59.9) 5.33 (135.4) 0.60 (15.2)
3/8" HOSE BARB AQCDC17006 3/8" 2.36 (59.9) 5.33 (135.4) 0.60 (15.2)
1/2" HOSE BARB AQCDC17008 3/8" 2.36 (59.9) 5.62 (142.7) 0.89 (22.6)

Coupling Inserts • POLYCARBONATE

TERMINATION PART NO. FLOW A B C
1/4" HOSE BARB AQCDC22004 1/4" 2.50 (63.5) 5.41 (137.4) 0.60 (15.2)
3/8" HOSE BARB AQCDC22006 3/8" 2.50 (63.5) 5.41 (137.4) 0.60 (15.2)
1/2" HOSE BARB AQCDC22008 3/8" 2.50 (63.5) 5.70 (144.8) 0.89 (22.6)

CLICK-PULL-TWIST Assembly Procedure To Disconect

"CLICK" PUSH

1 2 PULL 3

Align male and female couplings, Snap membrane pull tabs Twist the blue lock ring clock-wise When fluid transfer is finished,
push together until audible "CPC together and pull from connector. until "CPC Click" and rib to arrow press the thumb latch down
Click" confirmation. alignment confirms secure final to complete the sterile
Slight rotation of lock ring may connection. disconnection. Both halves will
be required for proper alignment remain sterile.
prior to connection.
