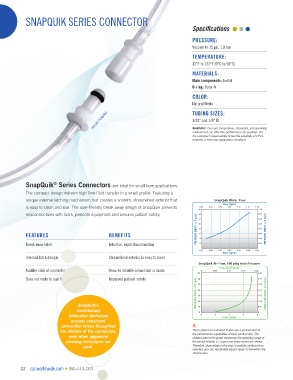

SNAPQUIK SERIES CONNECTOR
Specifications

PRESSURE:
Vacuum to 15 psi, 1.0 bar
TEMPERATURE:
32°F to 122°F (0°C to 50°C)
MATERIALS:
Main components: Acetal
O-ring: Buna-N

COLOR:
Natural White

PATENT PENDING TUBING SIZES:
3/32" and 1/8" ID
WARNING: Pressure, temperature, chemicals, and operating
environment can affect the performance of couplings. It is
the customer’s responsibility to test the suitability of CPC’s
products in their own application conditions.

®
SnapQuik Series Connectors are ideal for small bore applications.
The compact design delivers high flow fluid transfer in a small profile. Featuring a
unique internal latching mechanism that creates a smooth, streamlined exterior that SnapQuik Water Flow
is easy to clean and use. The user-friendly break away design of SnapQuik prevents 0.57 0.76 0.95 1.14 1.32 1.51 1.70
16 1.10
misconnections with luers, protects equipment and ensures patient safety. 14 0.97
12 0.83
10 0.69
8 0.55
FEATURES BENEFITS 6 0.41
4 0.28
Break away latch Intuitive, rapid disconnection 2 0.14
0.15 0.20 0.25 0.30 0.35 0.40 0.45
Internal latch design Streamlined exterior is easy to clean
SnapQuik Air Flow, 100 psig Inlet Pressure
Audible click at connection Assures reliable connection is made 0 0.06 0.11 0.17 0.22
70 4.83
Does not mate to luer fittings Improved patient safety 60 4.14
50 3.45
40 2.76
30 2.07
20 1.38
SnapQuik's 10 0.69
revolutionary
lubrication technique 0 0 2 4 6 8 0
ensures consistent
connection forces throughout
the lifetime of the connectors, These graphs are intended to give you a general idea of
even when aggressive the performance capabilities of each product line. The
shaded area of the graph represents the operating range of
cleaning techniques are the product family, i.e. upper and lower values are shown.
used. Therefore, depending on the exact coupling configurations
selected, you can reasonably expect values to fall within the
shaded area.
