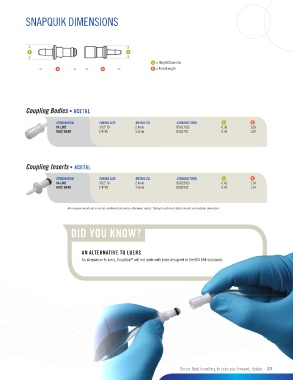

SNAPQUIK DIMENSIONS

A A

A = Height/Diameter
B B B = Total Length

Coupling Bodies • ACETAL

TERMINATION TUBING SIZE METRIC EQ. STRAIGHT THRU A B
IN-LINE 3/32" ID 2.4mm BSQ17015 0.36 1.09
HOSE BARB 1/8" ID 3.2mm BSQ1702 0.36 1.09

Coupling Inserts • ACETAL

TERMINATION TUBING SIZE METRIC EQ. STRAIGHT THRU A B
IN-LINE 3/32" ID 2.4mm BSQ22015 0.42 1.14
HOSE BARB 1/8" ID 3.2mm BSQ2202 0.42 1.14

All measurements are in inches (millimeters) unless otherwise noted. Tubing must meet stated inside and outside diameters.

DID YOU KNOW?

AN ALTERNATIVE TO LUERS
An alternative to luers, SnapQuik will not mate with luers designed to the ISO 594 standards
®

Smart fluid handling to take you forward, faster. 23
