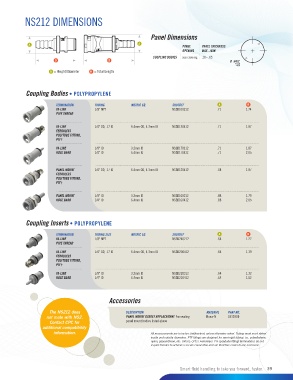

NS212 DIMENSIONS

Panel Dimensions

A A
PANEL PANEL THICKNESS
OPENING MAX.–MIN.
COUPLING BODIES see drawing .30– .05
B B Ø .688"
+.010
-.000
A = Height/Diameter B = Total Length

Coupling Bodies • POLYPROPYLENE

TERMINATION TUBING METRIC EQ. SHUTOFF A B
IN-LINE 1/8" NPT NS2D100212 .71 1.74
PIPE THREAD

IN-LINE 1/4" OD, .17 ID 6.4mm OD, 4.3mm ID NS2D130412 .71 1.87
FERRULESS
POLYTUBE FITTING,
PTF†
IN-LINE 1/8" ID 3.2mm ID NS2D170212 .71 1.87
HOSE BARB 1/4" ID 6.4mm ID NS2D170412 .71 2.05

PANEL MOUNT 1/4" OD, .17 ID 6.4mm OD, 4.3mm ID NS2D120412 .88 1.87
FERRULESS
POLYTUBE FITTING,
PTF†

PANEL MOUNT 1/8" ID 3.2mm ID NS2D160212 .88 1.79
HOSE BARB 1/4" ID 6.4mm ID NS2D160412 .88 2.05

Coupling Inserts • POLYPROPYLENE

TERMINATION TUBING SIZE METRIC EQ. SHUTOFF A B
IN-LINE 1/8" NPT NS2D240212 .64 1.27
PIPE THREAD
IN-LINE 1/4" OD, .17 ID 6.4mm OD, 4.3mm ID NS2D200412 .64 1.39
FERRULESS
POLYTUBE FITTING,
PTF†

IN-LINE 1/8" ID 3.2mm ID NS2D220212 .64 1.32
HOSE BARB 1/4" ID 6.4mm ID NS2D220412 .64 1.52

Accessories

The NS212 does DESCRIPTION Ferrules MATERIAL PART NO.
not mate with NS2. PANEL MOUNT GASKET REPLACEMENT: For sealing Buna-N 1830300
Contact CPC for panel mount bodies listed above
additional compatibility
information. All measurements are in inches (millimeters) unless otherwise noted. Tubing must meet stated
inside and outside diameters. PTF fittings are designed for semi-rigid tubing, i.e., polyethylene,
nylon, polyurethane, etc. †NOTE: CPC’s Ferruleless PTF (polytube fitting) terminations do not
require ferrules to achieve a secure connection and are therefore easier to use and reuse.
