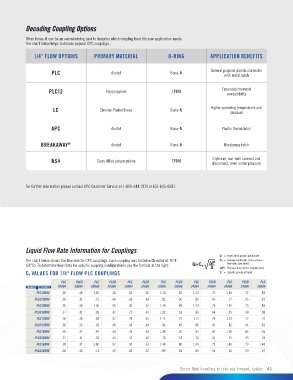

Decoding Coupling Options
Often times, it can be an overwhelming task to decipher which coupling best fits your application needs.
The chart below helps to decode popular CPC couplings.
1/4" FLOW OPTIONS PRIMARY MATERIAL O-RING APPLICATION BENEFITS
PLC Acetal Buna-N General purpose plastic connector
with metal latch
PLC12 Polypropylene EPDM Expanded chemical
compatibility
LC Chrome-Plated Brass Buna-N Higher operating temperature and
pressure
APC Acetal Buna-N Plastic thumb latch
BREAKAWAY ® Acetal Buna-N Breakaway latch
Drybreak, non-spill connect and
NS4 Glass-filled polypropylene EPDM disconnect, even under pressure
For further information please contact CPC Customer Service at 1-800-444-2474 or 651-645-0091.
Liquid Flow Rate Information for Couplings
Q = Flow rate in gallons per minute
The chart below shows the flow rate for CPC couplings. Each coupling was tested with water at 70°F Cv = Average coefficient across various
(21°C). To determine flow rates for specific coupling configurations use the formula at the right. flow rates (see chart)
P = Pressure drop across coupling (psi)
C V VALUES FOR 1/4" FLOW PLC COUPLINGS S = Specific gravity of liquid
PLC PLCD PLC PLCD PLC PLCD PLC PLCD PLC PLCD PLC PLCD PLC
BODIES INSERTS 20004 20004 20006 20006 22004 22004 22006 22006 24004 24004 24006 24006 26004
PLC10004 .40 .36 1.05 .58 .83 .56 1.40 .82 1.40 .75 1.40 .77 .83
PLCD10004 .36 .31 .73 .48 .66 .41 .82 .50 .80 .45 .77 .45 .81
PLC10006 .40 .36 1.05 .60 .83 .56 1.40 .81 1.40 .76 1.40 .76 .83
PLCD10006 .37 .31 .81 .47 .70 .43 1.02 .51 .98 .46 .99 .48 .98
PLC12006 .38 .36 .84 .63 .74 .56 1.14 .75 1.14 .70 1.14 .72 .74
PLCD12006 .38 .33 .78 .49 .68 .44 .84 .49 .81 .43 .82 .44 .81
PLC16004 .38 .37 .87 .54 .95 .51 1.00 .70 .95 .64 1.00 .66 .95
PLCD16004 .37 .31 .61 .44 .57 .41 .78 .44 .78 .43 .75 .46 .78
PLC16006 .38 .37 1.00 .57 .95 .53 1.40 .80 1.40 .71 1.40 .73 1.40
PLCD16006 .38 .32 .71 .49 .63 .42 .89 .51 .96 .45 .92 .49 .97
