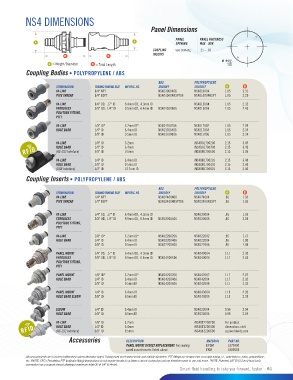

Page 62 - Colder Products Company - Catalog

NS4 DIMENSIONS
Panel Dimensions

PANEL PANEL THICKNESS
A A OPENING MAX.–MIN.
COUPLING see drawing .25 – .03
INSERTS
B B
Ø .945"
A = Height/Diameter B = Total Length +.010
-.000
Coupling Bodies • POLYPROPYLENE / ABS
ABS POLYPROPYLENE
TERMINATION TUBING/THREAD SIZE METRIC EQ. SHUTOFF SHUTOFF A B
IN-LINE 1/4" NPT NS4D1000406 NS4D10004 1.05 2.31
PIPE THREAD 1/4" BSPT NS4D10004BSPT06 NS4D10004BSPT 1.05 2.29
IN-LINE 1/4" OD, .17" ID 6.4mm OD, 4.3mm ID NS4D13004 1.05 2.32
FERRULESS 3/8" OD, 1/4" ID 9.5mm OD, 6.4mm ID NS4D1300606 NS4D13006 1.05 2.45
POLYTUBE FITTING,
PTF†
IN-LINE 1/8" ID* 3.2mm ID* NS4D1700206 NS4D17002 1.05 2.09
HOSE BARB 1/4" ID 6.4mm ID NS4D1700406 NS4D17004 1.05 2.34
3/8" ID 9.5mm ID NS4D1700606 NS4D17006 1.05 2.34

IN-LINE 1/8" ID 3.2mm iNS4DR1700200 2.15 3.49
HOSE BARB 1/4" ID 6.4mm iNS4DR1700400 2.15 3.49
(RS-232 Interface) 3/8" ID 9.5mm iNS4DR1700600 2.15 3.49
IN-LINE 1/4" ID 6.4mm ID iNS4DR1700201 2.15 3.40
HOSE BARB 3/8" ID 9.5mm ID iNS4DR1700401 2.15 3.40
(USB Interface) 1/2" ID 12.7mm ID iNS4DR1700601 2.15 3.40

Coupling Inserts • POLYPROPYLENE / ABS
ABS POLYPROPYLENE
TERMINATION TUBING/THREAD SIZE METRIC EQ. SHUTOFF SHUTOFF A B
IN-LINE 1/4" NPT NS4D2400406 NS4D24004 .96 1.95
PIPE THREAD 1/4" BSPT NS4D24004BSPT06 NS4D24004BSPT .96 1.95

IN-LINE 1/4" OD, .17" ID 6.4mm OD, 4.3mm ID NS4D20004 .96 1.95
FERRULESS 3/8" OD, 1/4" ID 9.5mm OD, 6.4mm ID NS4D2000606 NS4D20006 .96 2.09
POLYTUBE FITTING,
PTF†
IN-LINE 1/8" ID* 3.2mm ID* NS4D2200206 NS4D22002 .96 1.73
HOSE BARB 1/4" ID 6.4mm ID NS4D2200406 NS4D22004 .96 1.98
3/8" ID 9.5mm ID NS4D2200606 NS4D22006 .96 1.98
PANEL MOUNT 1/4" OD, .17" ID 6.4mm OD, 4.3mm ID NS4D40004 1.17 2.30
FERRULESS 3/8" OD, 1/4" ID 9.5mm OD, 6.4mm ID NS4D4000606 NS4D40006 1.17 2.43
POLYTUBE FITTING,
PTF†
PANEL MOUNT 1/8" ID* 3.2mm ID* NS4D4200206 NS4D42002 1.17 2.07
HOSE BARB 1/4" ID 6.4mm ID NS4D4200406 NS4D42004 1.17 2.32
3/8" ID 9.5mm ID NS4D4200606 NS4D42006 1.17 2.32

PANEL MOUNT 1/4" ID 6.4mm ID NS4D43004 1.19 2.39
HOSE BARB ELBOW 3/8" ID 9.5mm ID NS4D43006 1.19 2.39

ELBOW 1/4" ID 6.4mm ID NS4D23004 0.96 2.04
HOSE BARB 3/8" ID 9.5mm ID NS4D23006 0.96 2.04
IN-LINE 1/8" ID 3.2mm iNS4DT2200200 For product
HOSE BARB 1/4" ID 6.4mm iNS4DT2200400 dimensions visit
(RS-232 Interface) 3/8" ID 9.5mm iNS4DT2200600 cpcworldwide.com
Accessories DESCRIPTION MATERIAL PART NO.
PANEL MOUNT GASKET REPLACEMENT: For sealing EPDM 1879800
panel mount inserts listed above FKM 1889500
All measurements are in inches (millimeters) unless otherwise noted. Tubing must meet stated inside and outside diameters. PTF fittings are designed for semi-rigid tubing, i.e., polyethylene, nylon, polyurethane,
etc. †NOTE: CPC’s Ferruleless PTF (polytube fitting) terminations do not require ferrules to achieve a secure connection and are therefore easier to use and reuse. *NOTE: Patented 1/8" ID (3.2mm) hose barb
connection has a support shroud allowing a maximum tube OD of 1/4" (6.4mm).
