P. 31
Technical Specifications

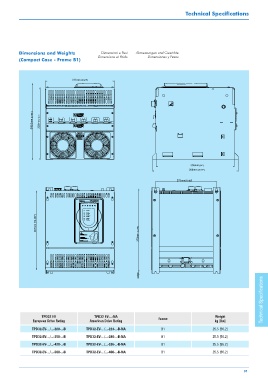

Dimensions and Weights Dimensioni e Pesi Abmessungen und Gewichte
Dimensions et Poids Dimensiones y Pesos
(Compact Case - Frame B1)
311mm [12.24”]
343.6mm [13.53”] 325mm [12.8”]
355mm [14”]
388mm [15.27”]
275mm [10.82”]
357mm [14.05”]
375mm [14.76”]
6.5mm
Technical Specifications
TPD32 EV TPD32 EV-...-NA Weight
European Drive Rating American Drive Rating Frame kg [lbs]
TPD32-EV-.../...-280-..-B TPD32-EV-.../...-224-..-B-NA B1 25.5 [56.2]
TPD32-EV-.../...-350-..-B TPD32-EV-.../...-280-..-B-NA B1 25.5 [56.2]
TPD32-EV-.../...-420-..-B TPD32-EV-.../...-336-..-B-NA B1 25.5 [56.2]
TPD32-EV-.../...-500-..-B TPD32-EV-.../...-400-..-B-NA B1 25.5 [56.2]
31
