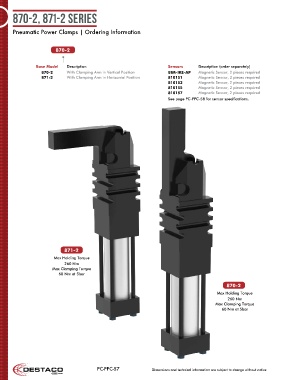

P. 320
870-2, 871-2 Series
Pneumatic Power Clamps | Ordering Information
870-2
Base Model Description Sensors Description (order separately)
870-2 With Clamping Arm in Vertical Position BIM-IKE-AP Magnetic Sensor, 2 pieces required
871-2 With Clamping Arm in Horizontal Position 810151 Magnetic Sensor, 2 pieces required
810153 Magnetic Sensor, 2 pieces required
810155 Magnetic Sensor, 2 pieces required
810157 Magnetic Sensor, 2 pieces required
See page PC-PPC-58 for sensor specifications.
871-2
Max Holding Torque
260 Nm
Max Clamping Torque
60 Nm at 5bar
870-2
Max Holding Torque
260 Nm
Max Clamping Torque
60 Nm at 5bar
PC-PPC-57 Dimensions and technical information are subject to change without notice
