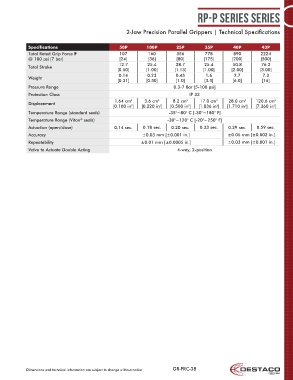

Page 38 - Destaco - Precision Parallel Grippers

RP-P Series Series

2-Jaw Precision Parallel Grippers | Technical Specifications

Specifications 50P 100P 25P 35P 40P 43P
Total Rated Grip Force F 107 160 356 778 890 2224
@ 100 psi [7 bar] [24] [36] [80] [175] [200] [500]
12.7 25.4 28.7 25.4 50.8 76.2
Total Stroke
[0.50] [1.00] [1.13] [1.00] [2.00] [3.00]
0.14 0.23 0.45 1.6 2.7 7.3
Weight
[0.31] [0.50] [1.0] [3.5] [6.0] [16]
Pressure Range 0.3-7 Bar [5-100 psi]
Protection Class IP 33
1.64 cm 3.6 cm 8.2 cm 17.0 cm 28.0 cm 120.6 cm
3
3
3
3
3
3
Displacement
[0.100 in ] [0.220 in ] [0.500 in ] [1.036 in ] [1.710 in ] [7.360 in ]
3
3
3
3
3
3
Temperature Range (standard seals) -35°~80° C [-30°~180° F]
Temperature Range (Viton seals) -30°~120° C [-20°~250° F]
®
Actuation (open/close) 0.14 sec. 0.18 sec. 0.20 sec. 0.33 sec. 0.39 sec. 0.59 sec.
Accuracy ±0.03 mm [±0.001 in.] ±0.05 mm [±0.002 in.]
Repeatability ±0.01 mm [±0.0005 in.] ±0.03 mm [±0.001 in.]
Valve to Actuate Double Acting 4-way, 2-position

Dimensions and technical information are subject to change without notice GR-PRC-38
