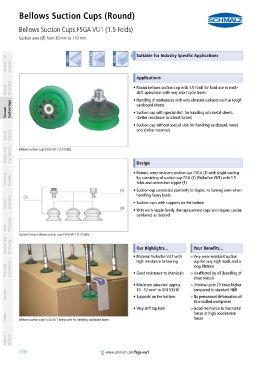

Bellows Suction Cups (Round)
Bellows Suction Cups FSGA VU1 (1.5 Folds)
PA01019111_inh_EN.pdf Suction area (Ø) from 30 mm to 110 mm PA01019111_inh_EN.pdf

container
Schmalz - The Company Suitable for Industry Specific Applications

container
Applications
Vacuum Knowledge • Round bellows suction cup with 1.5 folds for hard use in multi-
shift operations with very short cycle times
• Handling of workpieces with very abrasive surfaces such as rough
cardboard sheets
Vacuum Suction Cups • Suction cup with special slot: for handling oily metal sheets
(better resistance to lateral forces)

• Suction cup without special slot: for handling cardboard, wood
and similar materials
Special Grippers

Vacuum Grip- ping Systems Bellows suction cups FSGA VU1 (1.5 folds) Design

container

• Robust, wear-resistant suction cup FSGA (3) with single sealing
Mounting Elements lip, consisting of suction cup FGA (2) (Vulkollan VU1) with 1.5
folds and connection nipple (1)

• Suction cup connected positively to nipple; no turning even when
handling heavy loads
Vacuum Generators • Suction cups with supports on the bottom

• With each nipple family, the replacement cups and nipples can be
combined as desired
Valve Technology

System design bellows suction cups FSGA VU1 (1.5 folds)
Switches and Monitoring container Our Highlights... Your Benefits...

• Material Vulkollan VU1 with >Very wear-resistant suction
cup for very high loads and a
high resistance to tearing
Filters and Connections • Good resistance to chemicals >Unaffected by oil (handling of
long lifetime
sheet metal)
• Minimum abrasion: approx. >Lifetime up to 20 times higher
10 - 12 mm³ to DIN 53516
compared to standard NBR
Services • Supports on the bottom >No permanent deformation of
thin-walled workpieces
• Very stiff top fold >Good resistance to horizontal
Contact Bellows suction cups FSGA VU1 being used for handling cardboard boxes forces at high acceleration
forces

Index of Products

116 www.schmalz.com/fsga-vu1
