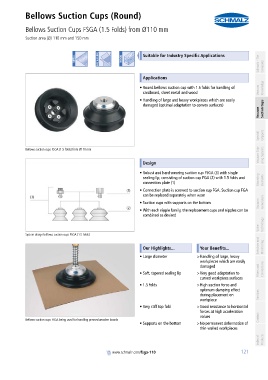

Bellows Suction Cups (Round)
Bellows Suction Cups FSGA (1.5 Folds) from Ø110 mm
PA01019111_inh_EN.pdf Suction area (Ø) 110 mm and 150 mm PA01019111_inh_EN.pdf

container
Suitable for Industry Specific Applications
Schmalz - The Company

container
Applications
• Round bellows suction cup with 1.5 folds for handling of Vacuum Knowledge
cardboard, sheet metal and wood
• Handling of large and heavy workpieces which are easily
damaged (optimal adaptation to convex surfaces) Suction Cups
Vacuum

Special Grippers

Vacuum Grip- ping Systems
Bellows suction cups FSGA (1.5 folds) from Ø110 mm
container
Design

• Robust and hard-wearing suction cup FSGA (3) with single
sealing lip, consisting of suction cup FGA (2) with 1.5 folds and Mounting
connection plate (1) Elements

• Connection plate is screwed to suction cup FGA. Suction cup FGA
can be replaced separately when worn
Vacuum
• Suction cups with supports on the bottom Generators
• With each nipple family, the replacement cups and nipples can be
combined as desired
Valve Technology

System design bellows suction cups FSGA (1.5 folds)
Switches and
container
Our Highlights... Your Benefits... Monitoring
• Large diameter >Handling of large, heavy
workpieces which are easily
damaged Connections
• Soft, tapered sealing lip >Very good adaptation to Filters and
curved workpiece surfaces
• 1.5 folds >High suction force and
optimum damping effect
during placement on Services
workpiece
• Very stiff top fold >Good resistance to horizontal
forces at high acceleration
values Contact
Bellows suction cups FSGA being used for handling pressed wooden boards
• Supports on the bottom >No permanent deformation of
thin-walled workpieces
Index of Products

container
www.schmalz.com/fsga-110
