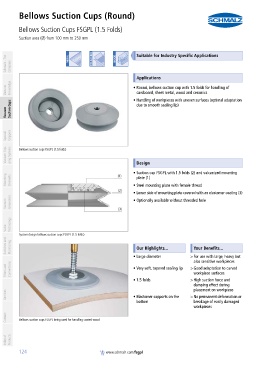

Bellows Suction Cups (Round)
Bellows Suction Cups FSGPL (1.5 Folds)
PA01019111_inh_EN.pdf Suction area (Ø) from 100 mm to 250 mm PA01019111_inh_EN.pdf

container
Schmalz - The Company Suitable for Industry Specific Applications

container
Applications
Vacuum Knowledge • Round, bellows suction cup with 1.5 folds for handling of
cardboard, sheet metal, wood and ceramics
• Handling of workpieces with uneven surfaces (optimal adaptation
Vacuum Suction Cups due to smooth sealing lip)

Special Grippers

Vacuum Grip- ping Systems Bellows suction cups FSGPL (1.5 folds) Design

container

• Suction cup FSGPL with 1.5 folds (2) and vulcanized mounting
Mounting Elements • Steel mounting plate with female thread
plate (1)

• Lower side of mounting plate covered with an elastomer coating (3)
Vacuum Generators • Optionally available without threaded hole

Valve Technology

System design bellows suction cups FSGPL (1.5 folds)
Switches and Monitoring container Our Highlights... Your Benefits...

• Large diameter >For use with large, heavy but
also sensitive workpieces
Filters and Connections • Very soft, tapered sealing lip >Good adaptation to curved

workpiece surfaces
• 1.5 folds >High suction force and
damping effect during
placement on workpiece
Services • Elastomer supports on the >No permanent deformation or

bottom breakage of easily damaged
workpieces
Contact Bellows suction cups FSGPL being used for handling coated wood

Index of Products

124 www.schmalz.com/fsgpl
