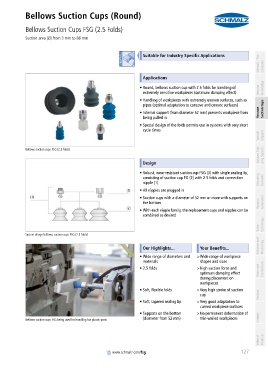

Bellows Suction Cups (Round)
Bellows Suction Cups FSG (2.5 Folds)
PA01019111_inh_EN.pdf Suction area (Ø) from 3 mm to 88 mm PA01019111_inh_EN.pdf

container
Suitable for Industry Specific Applications
Schmalz - The Company

container
Applications
• Round, bellows suction cup with 2.5 folds for handling of Vacuum Knowledge
extremely sensitive workpieces (optimum damping effect)
• Handling of workpieces with extremely uneven surfaces, such as
pipes (optimal adaptation to concave and convex surfaces) Suction Cups
• Internal support (from diameter 52 mm) prevents workpiece from Vacuum
being pulled in

• Special design of the folds permits use in systems with very short
cycle times
Special Grippers

Vacuum Grip- ping Systems
Bellows suction cups FSG (2.5 folds)
container
Design

• Robust, wear-resistant suction cup FSG (3) with single sealing lip,
consisting of suction cup FG (2) with 2.5 folds and connection Mounting
nipple (1) Elements

• All nipples are plugged in
• Suction cups with a diameter of 52 mm or more with supports on
the bottom Vacuum Generators
• With each nipple family, the replacement cups and nipples can be
combined as desired
Valve Technology

System design bellows suction cups FSG (2.5 folds)
Switches and
container
Our Highlights... Your Benefits... Monitoring
• Wide range of diameters and >Wide range of workpiece
materials shapes and sizes
• 2.5 folds >High suction force and Filters and Connections
optimum damping effect
during placement on
workpieces
• Soft, flexible folds >Very high stroke of suction
cup Services
• Soft, tapered sealing lip >Very good adaptation to
curved workpiece surfaces
• Supports on the bottom >No permanent deformation of
(diameter from 52 mm) thin-walled workpieces Contact
Bellows suction cups FSG being used for handling hot plastic parts
