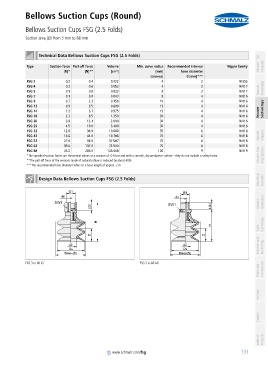

Bellows Suction Cups (Round)
Bellows Suction Cups FSG (2.5 Folds)
PA01019111_inh_EN.pdf Suction area (Ø) from 3 mm to 88 mm PA01019111_inh_EN.pdf

container

container Technical Data Bellows Suction Cups FSG (2.5 Folds) Schmalz - The
Type Suction force Pull-off force Volume Min. curve radius Recommended internal Nipple family Company
[N]* [N]** [cm³] [mm] hose diameter
(convex) d [mm]***
FSG 3 0,2 0.4 0.022 4 2 N 055
FSG 4 0.3 0.6 0.053 4 2 N 017 Knowledge
FSG 5 0.1 0.8 0.033 8 2 N 017 Vacuum
FSG 7 0.1 0.9 0.043 8 4 N 016
FSG 9 0.7 2.3 0.150 10 4 N 016
FSG 12 0.9 3.5 0.600 13 4 N 016
FSG 14 1.2 5.7 0.975 15 4 N 016 Vacuum Suction Cups
FSG 18 2.3 8.5 1.350 20 4 N 016
FSG 20 3.8 12.1 2.000 30 4 N 016
FSG 25 4.5 19.0 5.400 30 4 N 016
FSG 32 12.0 36.9 10.000 35 6 N 018
FSG 42 13.6 44.0 19.786 75 6 N 018 Special Grippers
FSG 52 27.0 96.0 37.587 75 6 N 018
FSG 62 39.6 137.0 72.500 75 6 N 018
FSG 88 45.2 286.0 143.668 100 9 N 019
*The specified suction forces are theoretical values at a vacuum of -0.6 bar and with a smooth, dry workpiece surface - they do not include a safety factor Vacuum Grip- ping Systems
**The pull-off force of the versions made of natural rubber is reduced by about 40%
***The recommended hose diameter refers to a hose length of approx. 2 m
Mounting Elements
container
Design Data Bellows Suction Cups FSG (2.5 Folds)
container

Vacuum Generators

Valve Technology

Switches and Monitoring

FSG 3 to 88 IG FSG 3 to 88 AG
Filters and Connections

Services

Contact

Index of Products

container
container 131
www.schmalz.com/fsg
