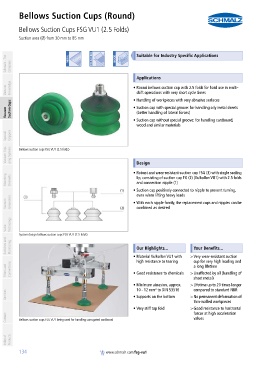

Bellows Suction Cups (Round)
Bellows Suction Cups FSG VU1 (2.5 Folds)
PA01019111_inh_EN.pdf Suction area (Ø) from 30 mm to 85 mm PA01019111_inh_EN.pdf

container
Schmalz - The Company Suitable for Industry Specific Applications

container
Applications
Vacuum Knowledge • Round bellows suction cup with 2.5 folds for hard use in multi-
shift operations with very short cycle times
• Handling of workpieces with very abrasive surfaces
Vacuum Suction Cups • Suction cup with special groove: for handling oily metal sheets
(better handling of lateral forces)
• Suction cup without special groove: for handling cardboard,
wood and similar materials
Special Grippers

Vacuum Grip- ping Systems Bellows suction cups FSG VU1 (2.5 folds) Design

container

• Robust and wear-resistant suction cup FSG (3) with single sealing
Mounting Elements lip, consisting of suction cup FG (2) (Vulkollan VU1) with 2.5 folds
and connection nipple (1)

• Suction cup positively connected to nipple to prevent turning,
even when lifting heavy loads
Vacuum Generators • With each nipple family, the replacement cups and nipples can be

combined as desired

Valve Technology

System design bellows suction cups FSG VU1 (2.5 folds)
Switches and Monitoring container Our Highlights... Your Benefits...

• Material Vulkollan VU1 with >Very wear-resistant suction
high resistance to tearing
cup for very high loading and
Filters and Connections • Good resistance to chemicals >Unaffected by oil (handling of
a long lifetime
sheet metal)
• Minimum abrasion, approx. >Lifetime up to 20 times longer
10 - 12 mm³ to DIN 53516
compared to standard NBR
Services • Supports on the bottom >No permanent deformation of
thin-walled workpieces
• Very stiff top fold >Good resistance to horizontal
Contact Bellows suction cups FSG VU1 being used for handling corrugated cardboard forces at high acceleration
values

Index of Products

134 www.schmalz.com/fsg-vu1
