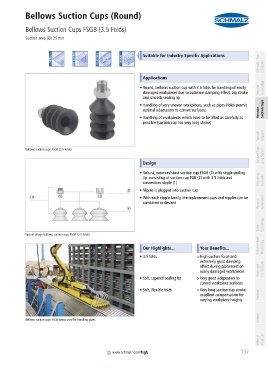

Bellows Suction Cups (Round)
Bellows Suction Cups FSGB (3.5 Folds)
PA01019111_inh_EN.pdf Suction area (Ø) 25 mm PA01019111_inh_EN.pdf

container
Suitable for Industry Specific Applications
Schmalz - The Company

container
Applications
• Round, bellows suction cup with 3.5 folds for handling of easily Vacuum Knowledge
damaged workpieces due to optimum damping effect, big stroke
and smooth sealing lip
• Handling of very uneven workpieces, such as pipes (folds permit
optimal adaptation to convex surfaces) Vacuum Suction Cups
• Handling of workpieces which have to be lifted as carefully as
possible (suction cup has very long stroke)

Special Grippers

Vacuum Grip- ping Systems
Bellows suction cups FSGB (3.5 folds)
container
Design

• Robust, wear-resistant suction cup FSGB (3) with single sealing
lip, consisting of suction cup FGB (2) with 3.5 folds and Mounting
connection nipple (1) Elements

• Nipple is plugged into suction cup
• With each nipple family, the replacement cups and nipples can be
Vacuum
combined as desired Generators

Valve Technology

System design bellows suction cups FSGB (3.5 folds)
Switches and
container
Our Highlights... Your Benefits... Monitoring
• 3.5 folds >High suction force and
extremely good damping
effect during placement on
easily damaged workpieces Filters and Connections
• Soft, tapered sealing lip >Very good adaptation to
curved workpiece surfaces
• Soft, flexible folds >Very long suction cup stroke;
excellent compensation for Services
varying workpiece heights

Contact
Bellows suction cups FSGB being used for handling pipes

Index of Products

container
container 137
www.schmalz.com/fsgb
