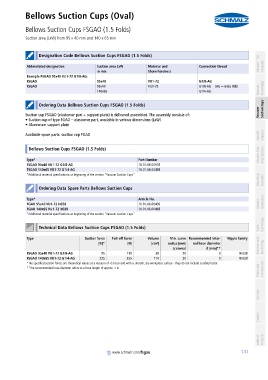

Page 141 - Schmalz - Vacuum Components

EN_Sauggreifer.book Seite 141 Donnerstag, 25. Februar 2016 5:25 17
PA01019111_inh_EN.pdf
Bellows Suction Cups (Oval)
Bellows Suction Cups FSGAO (1.5 Folds)
PA01019111_inh_EN.pdf Suction area (LxW) from 95 x 40 mm and 140 x 65 mm PA01019111_inh_EN.pdf

container

container Designation Code Bellows Suction Cups FSGAO (1.5 Folds) Schmalz - The
Abbreviated designation Suction area LxW Material and Connection thread Company
in mm Shore hardness
Example FSGAO 95x40 VU1-72 G1/8-AG:
FSGAO 95x40 VU1-72 G1/8-AG
FSGAO 95x40 VU1-72 G1/8-AG (AG = male (M)) Knowledge
140x65 G1/4-AG Vacuum

container
Ordering Data Bellows Suction Cups FSGAO (1.5 Folds) Suction Cups
Vacuum
Suction cup FSGAO (elastomer part + support plate) is delivered assembled. The assembly consists of:
container
• Suction cup of type FGAO – elastomer part, available in various dimensions (LxW)
• Aluminium support plate
Special
Available spare parts: suction cup FGAO Grippers
container
Vacuum Grip- ping Systems
Bellows Suction Cups FSGAO (1.5 Folds)
container
Type* Part Number
FSGAO 95x40 VU1-72 G1/8-AG 10.01.06.00503
FSGAO 140x65 VU1-72 G1/4-AG 10.01.06.00498
Mounting Elements
*Additional material specifications at beginning of the section "Vacuum Suction Cups"
container
Ordering Data Spare Parts Bellows Suction Cups

container
Type* Article No.
FGAO 95x40 VU1-72 N038 10.01.06.00499 Vacuum Generators
FGAO 140x65 VU1-72 N039 10.01.06.00468
*Additional material specifications at beginning of the section "Vacuum Suction Cups"

container Technology
Technical Data Bellows Suction Cups FSGAO (1.5 Folds) Valve

container
Type Suction force Pull-off force Volume Min. curve Recommended inter- Nipple family
[N]* [N] [cm³] radius [mm] nal hose diameter
(convex) d [mm]** Switches and Monitoring
FSGAO 95x40 VU1-72 G1/8-AG 95 110 38 20 9 N 038
FSGAO 140x65 VU1-72 G1/4-AG 225 255 114 30 9 N 039
*The specified suction forces are theoretical values at a vacuum of -0.6 bar and with a smooth, dry workpiece surface - they do not include a safety factor.
Filters and Connections
**The recommended hose diameter refers to a hose length of approx. 2 m

Services

Contact

Index of Products

container
container 141
www.schmalz.com/fsgao
