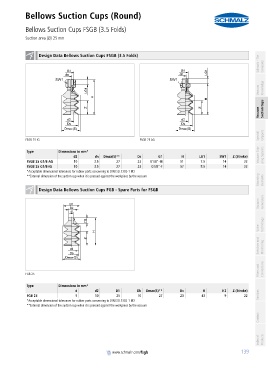

Bellows Suction Cups (Round)
Bellows Suction Cups FSGB (3.5 Folds)
PA01019111_inh_EN.pdf Suction area (Ø) 25 mm PA01019111_inh_EN.pdf

container

container Design Data Bellows Suction Cups FSGB (3.5 Folds) Schmalz - The Company

Vacuum Knowledge

Vacuum Suction Cups

Special Grippers
FSGB 25 IG FSGB 25 AG

container
Type Dimensions in mm*
d2 dn Dmax(S)** Ds G1 H LG1 SW1 Z (Stroke) Vacuum Grip- ping Systems
FSGB 25 G1/8-AG 10 3.5 27 23 G1/8"-M 51 7.5 14 22
FSGB 25 G1/8-IG 10 3.5 27 23 G1/8"-F 57 8.5 14 22
*Acceptable dimensional tolerances for rubber parts concerning to DIN ISO 3302-1 M3
Mounting Elements
**External dimension of the suction cup when it is pressed against the workpiece by the vacuum
container
Design Data Bellows Suction Cups FGB - Spare Parts for FSGB
container
Vacuum Generators

Valve Technology

Switches and Monitoring

Filters and Connections

FGB 25

container
Type Dimensions in mm*
d d2 D1 Dk Dmax(S)** Ds H H2 Z (Stroke)
FGB 25 5 10 25 10 27 23 43 9 22 Services
*Acceptable dimensional tolerances for rubber parts concerning to DIN ISO 3302-1 M3
**External dimension of the suction cup when it is pressed against the workpiece by the vacuum
Contact

Index of Products
