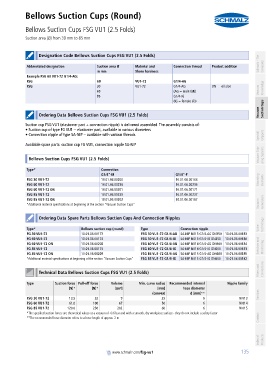

Bellows Suction Cups (Round)
Bellows Suction Cups FSG VU1 (2.5 Folds)
PA01019111_inh_EN.pdf Suction area (Ø) from 30 mm to 85 mm PA01019111_inh_EN.pdf

container

container Designation Code Bellows Suction Cups FSG VU1 (2.5 Folds) Schmalz - The
Abbreviated designation Suction area Ø Material and Connection thread Product addition Company
in mm Shore hardness
Example FSG 60 VU1-72 G1/4-AG:
FSG 60 VU1-72 G1/4-AG
FSG 30 VU1-72 G1/4-AG ON oil slot Knowledge
60 (AG = male (M)) Vacuum
85 G1/4-IG
(IG = female (F))
Vacuum
container Suction Cups
Ordering Data Bellows Suction Cups FSG VU1 (2.5 Folds)
Suction cup FSG VU1 (elastomer part + connection nipple) is delivered assembled. The assembly consists of:
container
• Suction cup of type FG VU1 – elastomer part, available in various diameters
Special
• Connection nipple of type SA-NIP – available with various threads Grippers
Available spare parts: suction cup FG VU1, connection nipple SA-NIP
Vacuum Grip- ping Systems
container
Bellows Suction Cups FSG VU1 (2.5 Folds)

container
Type* Connection
G1/4"-M G1/4"-F
FSG 30 VU1-72 10.01.06.00200 10.01.06.00166 Mounting Elements
FSG 60 VU1-72 10.01.06.00238 10.01.06.00236
FSG 60 VU1-72 ON 10.01.06.00201 10.01.06.00171
FSG 85 VU1-72 10.01.06.00239 10.01.06.00237
FSG 85 VU1-72 ON 10.01.06.00202 10.01.06.00167
*Additional material specifications at beginning of the section "Vacuum Suction Cups" Vacuum Generators

container
Ordering Data Spare Parts Bellows Suction Cups And Connection Nipples
Valve
container Technology
Type* Bellows suction cup (round) Type Connection nipple
FG 30 VU1-72 10.01.06.00173 FSG 30 VU1-72 G1/4-AG SA-NIP N013 G1/4-AG DN350 10.01.06.00183
FG 60 VU1-72 10.01.06.00174 FSG 30 VU1-72 G1/4-IG SA-NIP N013 G1/4-IG DN350 10.01.06.00180
FG 60 VU1-72 ON 10.01.06.00208 FSG 60 VU1-72 G1/4-AG SA-NIP N014 G1/4-AG DN600 10.01.06.00184 Switches and
FG 85 VU1-72 10.01.06.00175 FSG 60 VU1-72 G1/4-IG SA-NIP N014 G1/4-IG DN600 10.01.06.00181 Monitoring
FG 85 VU1-72 ON 10.01.06.00209 FSG 85 VU1-72 G1/4-AG SA-NIP N015 G1/4-AG DN600 10.01.06.00185
*Additional material specifications at beginning of the section "Vacuum Suction Cups" FSG 85 VU1-72 G1/4-IG SA-NIP N015 G1/4-IG DN600 10.01.06.00182
Filters and
container Connections
Technical Data Bellows Suction Cups FSG VU1 (2.5 Folds)
container
Type Suction force Pull-off force Volume Min. curve radius Recommended internal Nipple family
[N]* [N]* [cm³] [mm] hose diameter
(convex) d [mm]** Services
FSG 30 VU1-72 13.5 32 9 25 6 N 013
FSG 60 VU1-72 61.0 100 67 50 6 N 014
FSG 85 VU1-72 120.0 250 202 60 6 N 015
*The specified suction forces are theoretical values at a vacuum of -0.6 bar and with a smooth, dry workpiece surface - they do not include a safety factor
**The recommended hose diameter refers to a hose length of approx. 2 m Contact
