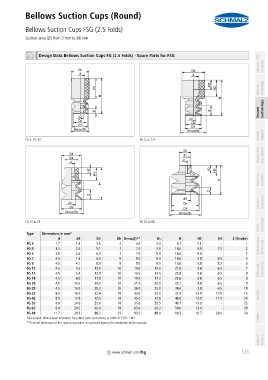

Bellows Suction Cups (Round)
Bellows Suction Cups FSG (2.5 Folds)
PA01019111_inh_EN.pdf Suction area (Ø) from 3 mm to 88 mm PA01019111_inh_EN.pdf

container

container Design Data Bellows Suction Cups FG (2.5 Folds) - Spare Parts for FSG Schmalz - The Company

Vacuum Knowledge

Vacuum Suction Cups

Special Grippers
FG 5, 52, 62 FG 3, 4, 7, 9
Vacuum Grip- ping Systems
container

Mounting Elements

Vacuum Generators

FG 12 to 25 FG 32 to 88 Technology
Valve
container
Type Dimensions in mm*
d d2 D1 Dk Dmax(S)** Ds H H2 H3 Z (Stroke)
FG 3 1.7 1.8 3.6 4 4.0 3.0 6.7 2.1 - 1 Switches and
FG 4 3.5 2.4 5.1 7 7.0 3.8 14.0 3.9 7.0 2 Monitoring
FG 5 3.5 2.6 6.0 7 7.0 5.0 14.0 8.0 - 2
FG 7 4.5 1.8 6.5 9 9.0 5.9 14.0 3.8 6.5 3
FG 9 4.5 4.1 8.9 9 9.5 9.0 15.0 3.8 8.2 3
FG 12 4.5 5.0 12.0 10 13.0 12.0 21.0 3.8 6.5 7 Filters and Connections
FG 14 4.5 5.4 13.9 10 15.5 14.5 22.8 3.8 6.5 9
FG 18 4.5 8.0 17.8 10 19.0 17.2 22.6 3.8 6.5 9
FG 20 4.5 10.5 20.0 10 21.0 20.0 22.1 3.8 6.5 9
FG 25 4.5 10.0 25.0 10 26.0 23.0 34.0 3.8 6.5 18
FG 32 8.0 16.0 32.4 18 33.5 32.0 37.5 13.0 17.0 15 Services
FG 42 8.0 17.8 43.5 18 45.0 42.6 46.0 13.0 17.0 20
FG 52 8.0 24.6 52.0 18 55.0 52.5 48.7 13.0 - 25
FG 62 8.0 29.5 62.0 18 65.0 62.2 54.0 13.0 - 29
FG 88 11.7 29.3 88.2 25 95.5 89.0 86.5 19.7 26.0 34
*Acceptable dimensional tolerances for rubber parts concerning to DIN ISO 3302-1 M3 Contact
**External dimension of the suction cup when it is pressed against the workpiece by the vacuum

Index of Products

container
www.schmalz.com/fsg
