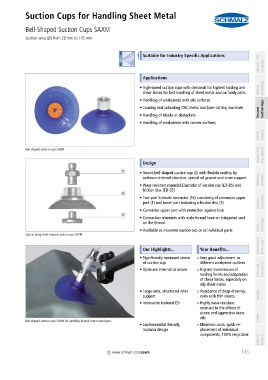

Suction Cups for Handling Sheet Metal
Bell-Shaped Suction Cups SAXM
PA01019111_inh_EN.pdf Suction area (Ø) from 20 mm to 115 mm PA01019111_inh_EN.pdf

container
Suitable for Industry Specific Applications
Schmalz - The Company

container
Applications
• High-speed suction cups with demands for highest holding and Vacuum Knowledge
shear forces for fast handling of sheet metal and car body parts
• Handling of workpieces with oily surfaces
• Loading and unloading CNC metal and laser cutting machines Suction Cups
• Handling of blanks at destackers Vacuum
• Handling of workpieces with convex surfaces

Special Grippers

Vacuum Grip- ping Systems
Bell-shaped suction cups SAXM
container
Design

• Round bell-shaped suction cup (2) with flexible sealing lip,
optimum internal structure, special oil groove and inner support Mounting Elements
• Wear-resistant material Elastodur of suction cup (ED-85) and
friction disc (ED-65)
• Two-part Schmalz connector (SC) consisting of connector upper
part (1) and lower part including a friction disc (3) Vacuum Generators
• Connector upper part with protection against lose
• Connection elements with male thread have an integrated seal
on the thread Technology
• Available as mounted suction cup or as individual parts Valve
System design bell-shaped suction cups SAXM
Switches and Monitoring
container
Our Highlights... Your Benefits...
• Significantly increased stroke >Very good adjustment to
of suction cup different workpiece outlines
• Optimum internal structure >Highest transmission of Filters and Connections
holding forces and adaptation
of shear forces, especially on
oily sheet metal
• Large-area, structured inner >Avoidance of deep-drawing,
support even with thin sheets Services
• Innovative material ED >Highly wear-resistant,
resistant to the effects of
ozone and aggressive draw
oils Contact
Bell-shaped suction cups SAXM for handling formed sheet metal parts
• Environmental friendly, >Minimum costs, quick re-
modular design placement of individual
components, 100% recyclable
Index of Products
container
www.schmalz.com/saxm
