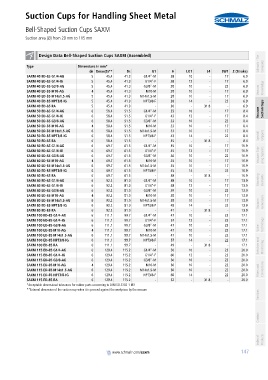

Suction Cups for Handling Sheet Metal
Bell-Shaped Suction Cups SAXM
PA01019111_inh_EN.pdf Suction area (Ø) from 20 mm to 115 mm PA01019111_inh_EN.pdf

container

container Design Data Bell-Shaped Suction Cups SAXM (Assembled) Schmalz - The
Type Dimensions in mm* Company
dn Dmax(S)** Ds G1 H LG1 L4 SW1 Z (Stroke)
SAXM 40 ED-85 G1/4-AG 5 45.4 41.3 G1/4"-M 28 10 - 17 6.9
SAXM 40 ED-85 G1/4-IG 5 45.4 41.3 G1/4"-F 38 12 - 17 6.9
SAXM 40 ED-85 G3/8-AG 5 45.4 41.3 G3/8"-M 28 10 - 22 6.9 Knowledge
SAXM 40 ED-85 M10-AG 4 45.4 41.3 M10-M 28 10 - 17 6.9 Vacuum
SAXM 40 ED-85 M14x1.5-AG 5 45.4 41.3 M14x1.5-M 28 10 - 17 6.9
SAXM 40 ED-85 NPT3/8-IG 5 45.4 41.3 NPT3/8-F 38 14 - 22 6.9
SAXM 40 ED-85 RA 5 45.4 41.3 - 30 - 31.8 - 6.9
SAXM 50 ED-85 G1/4-AG 6 58.4 51.5 G1/4"-M 33 10 - 17 8.4 Vacuum Suction Cups
SAXM 50 ED-85 G1/4-IG 6 58.4 51.5 G1/4"-F 43 12 - 17 8.4
SAXM 50 ED-85 G3/8-AG 6 58.4 51.5 G3/8"-M 33 10 - 22 8.4
SAXM 50 ED-85 M10-AG 4 58.4 51.5 M10-M 33 10 - 17 8.4
SAXM 50 ED-85 M14x1.5-AG 6 58.4 51.5 M14x1.5-M 33 10 - 17 8.4
SAXM 50 ED-85 NPT3/8-IG 6 58.4 51.5 NPT3/8-F 43 14 - 22 8.4 Special Grippers
SAXM 50 ED-85 RA 6 58.4 51.5 - 35 - 31.8 - 8.4
SAXM 60 ED-85 G1/4-AG 6 69.7 61.5 G1/4"-M 35 10 - 17 10.9
SAXM 60 ED-85 G1/4-IG 6 69.7 61.5 G1/4"-F 45 12 - 17 10.9
SAXM 60 ED-85 G3/8-AG 6 69.7 61.5 G3/8"-M 36 10 - 22 10.9 Vacuum Grip- ping Systems
SAXM 60 ED-85 M10-AG 4 69.7 61.5 M10-M 35 10 - 17 10.9
SAXM 60 ED-85 M14x1.5-AG 6 69.7 61.5 M14x1.5-M 35 10 - 17 10.9
SAXM 60 ED-85 NPT3/8-IG 6 69.7 61.5 NPT3/8-F 45 14 - 22 10.9
SAXM 60 ED-85 RA 6 69.7 61.5 - 38 - 31.8 - 10.9
SAXM 80 ED-85 G1/4-AG 6 92.2 81.0 G1/4"-M 38 10 - 17 13.9 Mounting Elements
SAXM 80 ED-85 G1/4-IG 6 92.2 81.0 G1/4"-F 48 12 - 17 13.9
SAXM 80 ED-85 G3/8-AG 6 92.2 81.0 G3/8"-M 39 10 - 22 13.9
SAXM 80 ED-85 M10-AG 4 92.2 81.0 M10-M 38 10 - 17 13.9
SAXM 80 ED-85 M14x1.5-AG 6 92.2 81.0 M14x1.5-M 38 10 - 17 13.9 Generators
SAXM 80 ED-85 NPT3/8-IG 6 92.2 81.0 NPT3/8-F 48 14 - 22 13.9 Vacuum
SAXM 80 ED-85 RA 6 92.2 81.0 - 41 - 31.8 - 13.9
SAXM 100 ED-85 G1/4-AG 6 111.1 99.7 G1/4"-M 47 10 - 22 17.1
SAXM 100 ED-85 G1/4-IG 6 111.1 99.7 G1/4"-F 57 12 - 22 17.1
SAXM 100 ED-85 G3/8-AG 6 111.1 99.7 G3/8"-M 47 10 - 22 17.1 Technology
SAXM 100 ED-85 M10-AG 4 111.1 99.7 M10-M 47 10 - 22 17.1 Valve
SAXM 100 ED-85 M14x1.5-AG 6 111.1 99.7 M14x1.5-M 47 10 - 22 17.1
SAXM 100 ED-85 NPT3/8-IG 6 111.1 99.7 NPT3/8-F 57 14 - 22 17.1
SAXM 100 ED-85 RA 6 111.1 99.7 - 49 - 31.8 - 17.1 Switches and Monitoring
SAXM 115 ED-85 G1/4-AG 6 129.4 115.2 G1/4"-M 50 10 - 22 20.0
SAXM 115 ED-85 G1/4-IG 6 129.4 115.2 G1/4"-F 60 12 - 22 20.0
SAXM 115 ED-85 G3/8-AG 6 129.4 115.2 G3/8"-M 50 10 - 22 20.0
SAXM 115 ED-85 M10-AG 4 129.4 115.2 M10-M 50 10 - 22 20.0
SAXM 115 ED-85 M14x1.5-AG 6 129.4 115.2 M14x1.5-M 50 10 - 22 20.0 Filters and Connections
SAXM 115 ED-85 NPT3/8-IG 6 129.4 115.2 NPT3/8-F 60 14 - 22 20.0
SAXM 115 ED-85 RA 6 129.4 115.2 - 52 - 31.8 - 20.0
*Acceptable dimensional tolerances for rubber parts concerning to DIN ISO 3302-1 M3
**External dimension of the suction cup when it is pressed against the workpiece by the vacuum
