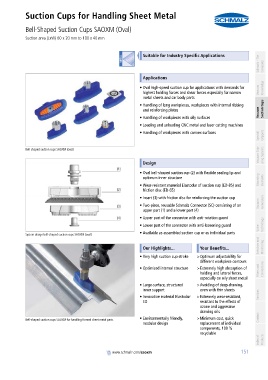

Suction Cups for Handling Sheet Metal
Bell-Shaped Suction Cups SAOXM (Oval)
PA01019111_inh_EN.pdf Suction area (LxW) 60 x 20 mm to 100 x 40 mm PA01019111_inh_EN.pdf

container
Suitable for Industry Specific Applications
Schmalz - The Company

container
Applications
• Oval high-speed suction cup for applications with demands for Vacuum Knowledge
highest holding forces and shear forces especially for narrow
metal sheets and car body parts
• Handling of long workpieces, workpieces with internal ribbing
and reinforcing plates Vacuum Suction Cups
• Handling of workpieces with oily surfaces

• Loading and unloading CNC metal and laser cutting machines
• Handling of workpieces with convex surfaces
Special Grippers

Vacuum Grip- ping Systems
Bell-shaped suction cups SAOXM (oval)
container
Design

• Oval bell-shaped suction cup (2) with flexible sealing lip and
optimum inner structure Mounting Elements
• Wear-resistant material Elastodur of suction cup (ED-85) and
friction disc (ED-65)
• Insert (3) with friction disc for reinforcing the suction cup
• Two-piece, reusable Schmalz Connector (SC) consisting of an Vacuum Generators
upper part (1) and a lower part (4)
• Upper part of the connector with anti-rotation guard
• Lower part of the connector with anti-loosening guard Valve Technology
• Available as assembled suction cup or as individual parts
System design bell-shaped suction cups SAOXM (oval)
Switches and
container
Our Highlights... Your Benefits... Monitoring
• Very high suction cup stroke >Optimum adjustability for
different workpiece contours
• Optimized internal structure >Extremely high absorption of Filters and Connections
holding and lateral forces,
especially on oily sheet metal
• Large-surface, structured >Avoiding of deep-drawing,
inner support even with thin sheets
• Innovative material Elastodur >Extremely wear-resistant, Services
ED resistant to the effects of
ozone and aggressive
drawing oils
• Environmentally friendly, >Minimum cost, quick Contact
Bell-shaped suction cups SAOXM for handling formed sheet metal parts
modular design replacement of individual
components, 100 %
recyclable
Index of Products

container
www.schmalz.com/saoxm
