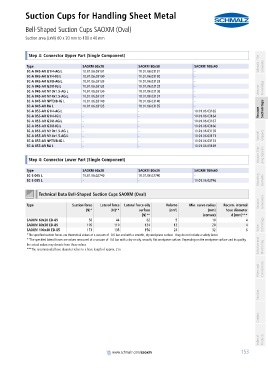

Suction Cups for Handling Sheet Metal
Bell-Shaped Suction Cups SAOXM (Oval)
PA01019111_inh_EN.pdf Suction area (LxW) 60 x 20 mm to 100 x 40 mm PA01019111_inh_EN.pdf

container

container Step 3: Connector Upper Part (Single Component) Schmalz - The
Type SAOXM 60x20 SAOXM 80x30 SAOXM 100x40 Company
SC-A 045-AR G1/4-AG L 10.01.06.03131 10.01.06.03131 -
SC-A 045-AR G1/4-IG L 10.01.06.03130 10.01.06.03130 -
SC-A 045-AR G3/8-AG L 10.01.06.03133 10.01.06.03133 -
SC-A 045-AR G3/8-IG L 10.01.06.03132 10.01.06.03132 - Knowledge
SC-A 045-AR M10x1.5-AG L 10.01.06.03136 10.01.06.03136 - Vacuum
SC-A 045-AR M14x1.5-AG L 10.01.06.03137 10.01.06.03137 -
SC-A 045-AR NPT3/8-IG L 10.01.06.03140 10.01.06.03140 -
SC-A 045-AR RA L 10.01.06.03135 10.01.06.03135 -
SC-A 055-AR G1/4-AG L - - 10.01.06.03165 Vacuum Suction Cups
SC-A 055-AR G1/4-IG L - - 10.01.06.03164
SC-A 055-AR G3/8-AG L - - 10.01.06.03167
SC-A 055-AR G3/8-IG L - - 10.01.06.03166
SC-A 055-AR M10x1.5-AG L - - 10.01.06.03170
SC-A 055-AR M14x1.5-AG L - - 10.01.06.03171 Special Grippers
SC-A 055-AR NPT3/8-IG L - - 10.01.06.03174
SC-A 055-AR RA L - - 10.01.06.03169
Vacuum Grip- ping Systems

container
Step 4: Connector Lower Part (Single Component)
container
Type SAOXM 60x20 SAOXM 80x30 SAOXM 100x40
Mounting
SC-S 045 L 10.01.06.02740 10.01.06.02740 -
SC-S 055 L - - 10.01.06.02746 Elements
container
Technical Data Bell-Shaped Suction Cups SAOXM (Oval)
Vacuum
container Generators
Type Suction force Lateral force Lateral force oily Volume Min. curve radius Recom. internal
[N]* [N]** surface [cm³] [mm] hose diameter
[N]** (convex) d [mm]***
SAOXM 60x20 ED-85 56 44 62 5 10 4
SAOXM 80x30 ED-85 105 110 134 13 20 4 Technology
SAOXM 100x40 ED-85 173 135 156 24 32 6 Valve
*The specified suction forces are theoretical values at a vacuum of -0.6 bar and with a smooth, dry workpiece surface - they do not include a safety factor
Switches and Monitoring
**The specified lateral forces are values measured at a vacuum of -0.6 bar with a dry or oily, smooth, flat workpiece surface. Depending on the workpiece surface and its quality,
the actual values may deviate from these values
***The recommended hose diameter refers to a hose length of approx. 2 m

Filters and Connections

Services

Contact

Index of Products

container
www.schmalz.com/saoxm
