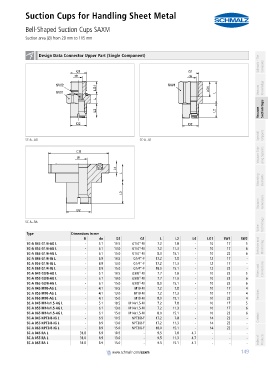

Suction Cups for Handling Sheet Metal
Bell-Shaped Suction Cups SAXM
PA01019111_inh_EN.pdf Suction area (Ø) from 20 mm to 115 mm PA01019111_inh_EN.pdf

container

container Design Data Connector Upper Part (Single Component) Schmalz - The Company

Vacuum Knowledge

Vacuum Suction Cups

Special Grippers
SC-A...AG SC-A...IG
container
Vacuum Grip- ping Systems

Mounting Elements

Vacuum Generators

SC-A...RA Technology
Valve
container
Type Dimensions in mm
B dn D2 G1 L L2 L4 LG1 SW1 SW2
SC-A 045 G1/4-AG L - 5.1 10.5 G1/4"-M 7.2 7.8 - 10 17 5 Switches and
SC-A 055 G1/4-AG L - 6.1 13.0 G1/4"-M 7.2 11.3 - 10 17 6 Monitoring
SC-A 065 G1/4-AG L - 6.1 15.0 G1/4"-M 8.0 15.1 - 10 22 6
SC-A 045 G1/4-IG L - 6.9 10.5 G1/4"-F 17.2 7.8 - 12 17 -
SC-A 055 G1/4-IG L - 8.9 13.0 G1/4"-F 17.2 11.3 - 12 17 -
SC-A 065 G1/4-IG L - 8.9 15.0 G1/4"-F 18.0 15.1 - 12 22 - Filters and Connections
SC-A 045 G3/8-AG L - 5.1 10.5 G3/8"-M 7.7 7.8 - 10 22 5
SC-A 055 G3/8-AG L - 6.1 13.0 G3/8"-M 7.7 11.3 - 10 22 6
SC-A 065 G3/8-AG L - 6.1 15.0 G3/8"-M 8.0 15.1 - 10 22 6
SC-A 045 M10-AG L - 4.1 10.5 M10-M 7.2 7.8 - 10 17 4
SC-A 055 M10-AG L - 4.1 13.0 M10-M 7.2 11.3 - 10 17 4 Services
SC-A 065 M10-AG L - 4.1 15.0 M10-M 8.0 15.1 - 10 22 4
SC-A 045 M14x1.5-AG L - 5.1 10.5 M14x1.5-M 7.2 7.8 - 10 17 5
SC-A 055 M14x1.5-AG L - 6.1 13.0 M14x1.5-M 7.2 11.3 - 10 17 6
SC-A 065 M14x1.5-AG L - 6.1 15.0 M14x1.5-M 8.0 15.1 - 10 22 6
SC-A 045 NPT3/8-IG L - 6.9 10.5 NPT3/8-F 17.2 7.8 - 14 22 - Contact
SC-A 055 NPT3/8-IG L - 8.9 13.0 NPT3/8-F 17.2 11.3 - 14 22 -
SC-A 065 NPT3/8-IG L - 8.9 15.0 NPT3/8-F 18.0 15.1 - 14 22 -
SC-A 045 RA L 31.8 6.9 10.5 - 9.5 7.8 4.7 - - -
SC-A 055 RA L 31.8 8.9 13.0 - 9.5 11.3 4.7 - - - Index of Products
SC-A 065 RA L 31.8 8.9 15.0 - 9.5 15.1 4.7 - - -
container
container 149
www.schmalz.com/saxm
