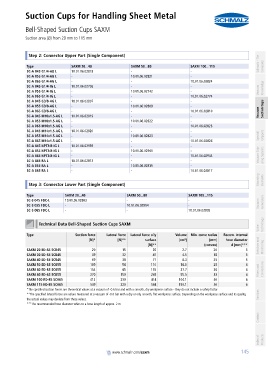

Suction Cups for Handling Sheet Metal
Bell-Shaped Suction Cups SAXM
PA01019111_inh_EN.pdf Suction area (Ø) from 20 mm to 115 mm PA01019111_inh_EN.pdf

container

container Step 2: Connector Upper Part (Single Component) Schmalz - The
Type SAXM 20...40 SAXM 50...80 SAXM 100...115 Company
SC-A 045 G1/4-AG L 10.01.06.02818 - -
SC-A 055 G1/4-AG L - 10.01.06.02821 -
SC-A 065 G1/4-AG L - - 10.01.06.02824
SC-A 045 G1/4-IG L 10.01.06.02736 - - Knowledge
SC-A 055 G1/4-IG L - 10.01.06.02742 - Vacuum
SC-A 065 G1/4-IG L - - 10.01.06.02774
SC-A 045 G3/8-AG L 10.01.06.02807 - -
SC-A 055 G3/8-AG L - 10.01.06.02809 -
SC-A 065 G3/8-AG L - - 10.01.06.02810 Vacuum Suction Cups
SC-A 045 M10x1.5-AG L 10.01.06.02819 - -
SC-A 055 M10x1.5-AG L - 10.01.06.02822 -
SC-A 065 M10x1.5-AG L - - 10.01.06.02825
SC-A 045 M14x1.5-AG L 10.01.06.02820 - -
SC-A 055 M14x1.5-AG L - 10.01.06.02823 - Special Grippers
SC-A 065 M14x1.5-AG L - - 10.01.06.02826
SC-A 045 NPT3/8-IG L 10.01.06.02939 - -
SC-A 055 NPT3/8-IG L - 10.01.06.02941 -
SC-A 065 NPT3/8-IG L - - 10.01.06.02943 Vacuum Grip- ping Systems
SC-A 045 RA L 10.01.06.02813 - -
SC-A 055 RA L - 10.01.06.02815 -
SC-A 065 RA L - - 10.01.06.02817
Mounting
container Elements
Step 3: Connector Lower Part (Single Component)

container
Type SAXM 20...40 SAXM 50...80 SAXM 100...115
SC-S 045 FDC-L 10.01.06.02803 - - Generators
SC-S 055 FDC-L - 10.01.06.02804 - Vacuum
SC-S 065 FDC-L - - 10.01.06.02805

container
Technical Data Bell-Shaped Suction Cups SAXM Technology
Valve
container
Type Suction force Lateral force Lateral force oily Volume Min. curve radius Recom. internal
[N]* [N]** surface [cm³] [mm] hose diameter
[N]** (convex) d [mm]*** Switches and Monitoring
SAXM 20 ED-85 SC045 20 15 20 2.7 20 5
SAXM 30 ED-85 SC045 39 32 41 4.5 18 5
SAXM 40 ED-85 SC045 69 38 71 8.3 25 5
SAXM 50 ED-85 SC055 109 58 110 18.0 25 6
SAXM 60 ED-85 SC055 154 85 155 27.7 30 6 Filters and Connections
SAXM 80 ED-85 SC055 270 150 269 55.5 33 6
SAXM 100 ED-85 SC065 412 230 414 104.1 40 6
SAXM 115 ED-85 SC065 549 320 584 150.1 50 6
*The specified suction forces are theoretical values at a vacuum of -0.6 bar and with a smooth, dry workpiece surface - they do not include a safety factor
**The specified lateral forces are values measured at a vacuum of -0.6 bar with a dry or oily, smooth, flat workpiece surface. Depending on the workpiece surface and its quality, Services
the actual values may deviate from these values.
***The recommended hose diameter refers to a hose length of approx. 2 m

Contact

Index of Products

container
container 145
www.schmalz.com/saxm
