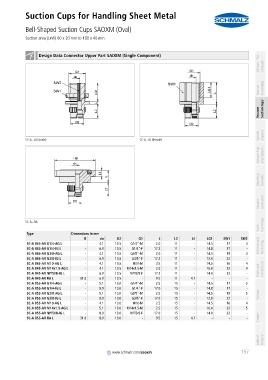

Suction Cups for Handling Sheet Metal
Bell-Shaped Suction Cups SAOXM (Oval)
PA01019111_inh_EN.pdf Suction area (LxW) 60 x 20 mm to 100 x 40 mm PA01019111_inh_EN.pdf

container

container Design Data Connector Upper Part SAOXM (Single Component) Schmalz - The Company

Vacuum Knowledge

Vacuum Suction Cups

Special Grippers
SC-A...AG (male) SC-A...IG (female)
Vacuum Grip- ping Systems
container

Mounting Elements

Vacuum Generators

SC-A...RA Technology
Valve
container
Type Dimensions in mm
B dn D2 G1 L L2 L4 LG1 SW1 SW2
SC-A 045-AR G1/4-AG L - 4.1 10.5 G1/4"-M 2.0 11 - 14.5 17 4 Switches and
SC-A 045-AR G1/4-IG L - 6.9 10.5 G1/4"-F 17.2 11 - 14.8 17 - Monitoring
SC-A 045-AR G3/8-AG L - 4.1 10.5 G3/8"-M 2.0 11 - 14.5 19 4
SC-A 045-AR G3/8-IG L - 6.9 10.5 G3/8"-F 17.2 11 - 12.0 22 -
SC-A 045-AR M10-AG L - 4.1 10.5 M10-M 3.5 11 - 14.5 16 4
SC-A 045-AR M14x1.5-AG L - 4.1 10.5 M14x1.5-M 2.0 11 - 16.0 22 4 Filters and Connections
SC-A 045-AR NPT3/8-IG L - 6.9 10.5 NPT3/8-F 17.2 11 - 14.0 22 -
SC-A 045-AR RA L 31.8 6.9 10.5 - 9.5 11 4.7 - - -
SC-A 055-AR G1/4-AG L - 5.1 13.0 G1/4"-M 2.5 15 - 14.5 17 5
SC-A 055-AR G1/4-IG L - 8.9 13.0 G1/4"-F 17.0 15 - 14.8 17 -
SC-A 055-AR G3/8-AG L - 5.1 13.0 G3/8"-M 2.5 15 - 14.5 19 5 Services
SC-A 055-AR G3/8-IG L - 8.9 13.0 G3/8"-F 17.0 15 - 12.0 22 -
SC-A 055-AR M10-AG L - 4.1 13.0 M10-M 2.5 15 - 14.5 16 4
SC-A 055-AR M14x1.5-AG L - 5.1 13.0 M14x1.5-M 2.5 15 - 16.0 22 5
SC-A 055-AR NPT3/8-IG L - 8.9 13.0 NPT3/8-F 17.0 15 - 14.0 22 -
SC-A 055-AR RA L 31.8 8.9 13.0 - 9.5 15 4.7 - - - Contact

Index of Products

container
container 157
www.schmalz.com/saoxm
