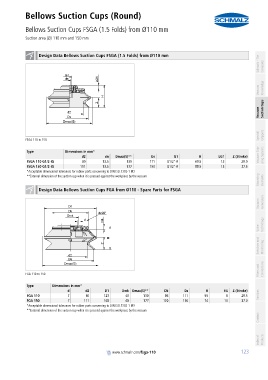

Bellows Suction Cups (Round)
Bellows Suction Cups FSGA (1.5 Folds) from Ø110 mm
PA01019111_inh_EN.pdf Suction area (Ø) 110 mm and 150 mm PA01019111_inh_EN.pdf

container

container Design Data Bellows Suction Cups FSGA (1.5 Folds) from Ø110 mm Schmalz - The Company

Vacuum Knowledge

Vacuum Suction Cups

Special Grippers
FSGA 110 to 150

container
Type Dimensions in mm*
d2 dn Dmax(S)** Ds G1 H LG1 Z (Stroke) Vacuum Grip- ping Systems
FSGA 110 G1/2-IG 80 13.5 130 111 G1/2"-F 69.5 13 29.0
FSGA 150 G1/2-IG 111 13.5 177 150 G1/2"-F 88.5 13 37.5
*Acceptable dimensional tolerances for rubber parts concerning to DIN ISO 3302-1 M3
Mounting Elements
**External dimension of the suction cup when it is pressed against the workpiece by the vacuum
container
Design Data Bellows Suction Cups FGA from Ø110 - Spare Parts for FSGA
container
Vacuum Generators

Valve Technology

Switches and Monitoring

Filters and Connections

FGA 110 to 150

container
Type Dimensions in mm*
d d2 D1 Dmk Dmax(S)** Dk Ds H H4 Z (Stroke)
FGA 110 7 80 123 40 130 86 111 55 8 29.5 Services
FGA 150 7 111 168 40 177 120 150 74 10 37.0
*Acceptable dimensional tolerances for rubber parts concerning to DIN ISO 3302-1 M3
**External dimension of the suction cup when it is pressed against the workpiece by the vacuum
Contact

Index of Products

container
container 123
www.schmalz.com/fsga-110
