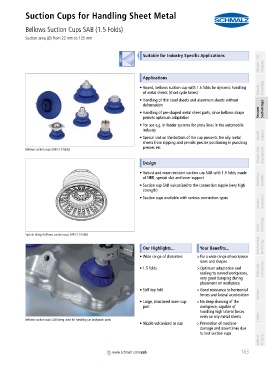

Suction Cups for Handling Sheet Metal
Bellows Suction Cups SAB (1.5 Folds)
PA01019111_inh_EN.pdf Suction area (Ø) from 22 mm to 125 mm PA01019111_inh_EN.pdf

container
Suitable for Industry Specific Applications
Schmalz - The Company

container
Applications
• Round, bellows suction cup with 1.5 folds for dynamic handling Vacuum Knowledge
of metal sheets (short cycle times)
• Handling of thin steel sheets and aluminum sheets without
deformation Suction Cups
• Handling of pre-shaped metal sheet parts, since bellows shape Vacuum
permits optimum adaptation

• For use e.g. in feeder systems for press lines in the automobile
industry
• Special slot on the bottom of the cup prevents the oily metal Special Grippers
sheets from slipping and permits precise positioning in punching
presses etc.
Vacuum Grip- ping Systems
Bellows suction cups SAB (1.5 folds)
container
Design

• Robust and wear-resistant suction cup SAB with 1.5 folds, made
of NBR, special slot and inner support Mounting Elements
• Suction cup SAB vulcanized to the connection nipple (very high
strength)
• Suction cups available with various connection types
Vacuum Generators

Valve Technology

System design bellows suction cups SAB (1.5 folds)
Switches and
container
Our Highlights... Your Benefits... Monitoring
• Wide range of diameters >For a wide range of workpiece
sizes and shapes
• 1.5 folds >Optimum adaptation and Filters and Connections
sealing to curved workpieces,
very good damping during
placement on workpiece
• Stiff top fold >Good resistance to horizontal
forces and lateral acceleration Services
• Large, structured inner sup- >No deep-drawing of the
port workpiece; capable of
handling high lateral forces
even on oily metal sheets Contact
Bellows suction cups SAB being used for handling car bodywork parts
• Nipple vulcanized to cup >Prevention of machine
damage and downtimes due
to lost suction cups
Index of Products

container
container 163
www.schmalz.com/sab
