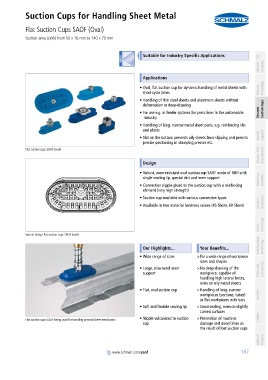

Suction Cups for Handling Sheet Metal
Flat Suction Cups SAOF (Oval)
PA01019111_inh_EN.pdf Suction area (LxW) from 50 x 16 mm to 140 x 70 mm PA01019111_inh_EN.pdf

container
Suitable for Industry Specific Applications
Schmalz - The Company

container
Applications
• Oval, flat suction cup for dynamic handling of metal sheets with Vacuum Knowledge
short cycle times
• Handling of thin steel sheets and aluminum sheets without
deformation or deep-drawing Suction Cups
• For use e.g. in feeder systems for press lines in the automobile Vacuum
industry

• Handling of long, narrow metal sheet parts, e.g. reinforcing ribs
and plates
• Slot on the bottom prevents oily sheets from slipping and permits Special Grippers
precise positioning in stamping presses etc.
Vacuum Grip- ping Systems
Flat suction cups SAOF (oval)
container
Design

• Robust, wear-resistant oval suction cup SAOF made of NBR with
single sealing lip, special slot and inner support Mounting Elements
• Connection nipple glued to the suction cup with a reinforcing
element (very high strength)
• Suction cup available with various connection types
Vacuum Generators
• Available in two material hardness values (45 Shore, 60 Shore)

Valve Technology

System design flat suction cups SAOF (oval)
Switches and
container
Our Highlights... Your Benefits... Monitoring
• Wide range of sizes >For a wide range of workpiece
sizes and shapes
• Large, structured inner >No deep-drawing of the Filters and Connections
support workpiece; capable of
handling high lateral forces,
even on oily metal sheets
• Flat, oval suction cup >Handling of long, narrow
workpieces (sections, tubes) Services
or flat workpieces with bars
• Soft and flexible sealing lip >Good sealing, even on slightly
curved surfaces
• Nipple vulcanized to suction >Prevention of machine Contact
Flat suction cups SAOF being used for handling pressed sheet-metal parts
cup damage and downtimes as
the result of lost suction cups
Index of Products

container
www.schmalz.com/saof
