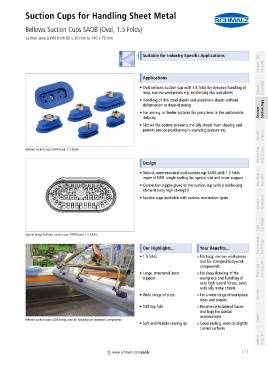

Suction Cups for Handling Sheet Metal
Bellows Suction Cups SAOB (Oval, 1.5 Folds)
PA01019111_inh_EN.pdf Suction area (LxW) from 60 x 30 mm to 140 x 70 mm PA01019111_inh_EN.pdf

container
Suitable for Industry Specific Applications
Schmalz - The Company

container
Applications
• Oval bellows suction cup with 1.5 folds for dynamic handling of Vacuum Knowledge
long, narrow workpieces e.g. reinforcing ribs and plates
• Handling of thin steel sheets and aluminum sheets without
deformation or deep-drawing Suction Cups
• For use e.g. in feeder systems for press lines in the automobile Vacuum
industry

• Slot on the bottom prevents the oily sheets from slipping and
permits precise positioning in stamping presses etc.
Special Grippers

Vacuum Grip- ping Systems
Bellows suction cups SAOB (oval, 1.5 folds)
container
Design

• Robust, wear-resistant oval suction cup SAOB with 1.5 folds
made of NBR, single sealing lip, special slot and inner support Mounting Elements
• Connection nipple glued to the suction cup with a reinforcing
element (very high strength)
• Suction cups available with various connection types
Vacuum Generators

Valve Technology

System design bellows suction cups SAOB (oval, 1.5 folds)
Switches and
container
Our Highlights... Your Benefits... Monitoring
• 1.5 folds >For long, narrow workpieces
and for stamped bodywork
components Connections
• Large, structured inner >No deep-drawing of the Filters and
support workpiece and handling of
very high lateral forces, even
with oily metal sheets
• Wide range of sizes >For a wide range of workpiece Services
sizes and shapes
• Stiff top fold >Resistance to lateral forces
and high horizontal
accelerations Contact
Bellows suction cups SAOB being used for handling car bodywork components
• Soft and flexible sealing lip >Good sealing, even on slightly
curved surfaces
Index of Products

container
container 171
www.schmalz.com/saob
